solnet-array-test Discussion Thread

[stale_taters]

@jgreco thank you for this script.

Is the script's output logged anywhere other than the console?



[jgreco]

No. I'm a UNIX traditionalist. Your output gets put on stdout. If you want it logged, run it under "script" or "|tee file" or "daemon" or "screen" (not all of which are strictly logging).



[stale_taters]

No. I'm a UNIX traditionalist. Your output gets put on stdout. If you want it logged, run it under "script" or "|tee file" or "daemon" or "screen" (not all of which are strictly logging).

Thank you.

I was running it with screen, and was easily able to copy my output to a file.



[F_L_A_S_H]

@jgreco first of all, thank you for the script. Second, I've searched and have not found if your script is broken on TrueNas Scale, or if I'm missing something (I'm new here, so that's likely).

Code:

Option: 1
./solnet-array-test-v2.sh: 1: camcontrol: not found

ERROR: No disks selected!

1) Use all disks (from camcontrol)
2) Use selected disks (from camcontrol|grep)
3) Specify disks
4) Show camcontrol list

Option:

ERROR: No disks selected!

1) Use all disks (from camcontrol)
2) Use selected disks (from camcontrol|grep)
3) Specify disks
4) Show camcontrol list

Option: ^[4

ERROR: No disks selected!

1) Use all disks (from camcontrol)
2) Use selected disks (from camcontrol|grep)
3) Specify disks
4) Show camcontrol list

Option: 4
./solnet-array-test-v2.sh: 99: camcontrol: not found
more: invalid option -- 'E'
Try 'more --help' for more information.
root@TrueNAS[~]# camcontrol
zsh: command not found: camcontrol
root@TrueNAS[~]# ./solnet-array-test-v2.sh
sol.net disk array test v2

1) Use all disks (from camcontrol)
2) Use selected disks (from camcontrol|grep)
3) Specify disks
4) Show camcontrol list

Option: 3

Enter disk devices separated by spaces (e.g. da1 da2): sdf

./solnet-array-test-v2.sh: 113: camcontrol: not found
more: invalid option -- 'E'
Try 'more --help' for more information.
root@TrueNAS[~]#



[F_L_A_S_H]

For what it's worth, Jgerco's script doesn't work on Scale in it's current state. I tried every option, including specifying disks to no avail.

For burning-in, I decided to install Core to a different drive (usb), boot from it, then use jgero's script ("wget ftp://ftp.sol.net/incoming/solnet-array-test-v2.sh" from the command line). After the burn-in testing, I'll boot Scale and use it for production. I'll hold on to the usb drive for future burn-in purposes.

I hope that's helpful for the next person.



[jsnas]

I used my ftp client to go to the location of the current version ("ftp://ftp.sol.net/incoming/") and while I'm able to log in to the ftp server and navigate around the folders, the incoming/ folder appears to be empty.

I'm wondering if anyone else is able to find the script (solnet-array-test-v2.sh) there now?



[NugentS]

I used my ftp client to go to the location of the current version ("ftp://ftp.sol.net/incoming/") and while I'm able to log in to the ftp server and navigate around the folders, the incoming/ folder appears to be empty.

I'm wondering if anyone else is able to find the script (solnet-array-test-v2.sh) there now?

I could post it here as I have a copy - woud that cause an issue? Looking at the license stuff at the front it seems OK to do so



[sretalla]

Jgerco's script doesn't work on Scale in it's current state.

Since it seems that the script uses camcontrol (which is freeBSD and not present on Linux), there's absolutely no surprise about that.

Somebody would need to re-work it to use hdparm and other tools to look at disks.



[Patrick M. Hausen]

Now if you use CODE instead if ICODE the formatting will be even more friendly



[NugentS]

Code:

#! /bin/sh -

#/*-
# * Copyright (c) 2000-2020 sol.net Network Services
# * All rights reserved.
# *
# * Redistribution and use in source and binary forms, with or without
# * modification, are permitted provided that the following conditions
# * are met:
# * 1. Redistributions of source code must retain the above copyright
# *    notice, this list of conditions and the following disclaimer.
# * 2. Redistributions in binary form must reproduce the above copyright
# *    notice, this list of conditions and the following disclaimer in the
# *    documentation and/or other materials provided with the distribution.
# * 3. All advertising materials mentioning features or use of this software
# *    must display the following acknowledgement:
# *      This product includes software developed by sol.net Network Services.
# * 4. Neither the name of the author nor the names of any co-contributors
# *    may be used to endorse or promote products derived from this software
# *    without specific prior written permission.
# *
# * THIS SOFTWARE IS PROVIDED BY SOL.NET NETWORK SERVICES AND CONTRIBUTORS
# * ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
# * LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
# * PARTICULAR PURPOSE ARE DISCLAIMED.  IN NO EVENT SHALL SOL.NET NETWORK
# * SERVICES OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
# * SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
# * TO, PROCUREMENT OF SUBSTITUTE GOODS  OR SERVICES; LOSS OF USE, DATA, OR
# * PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
# * LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
# * NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
# * SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
# *
# * $Id$
# *
# */

set -e
notselected=true
disklist=""
wdelay=60
#wdelay=6
climit=
#climit="count=100000"
passnumber=1

samplediskspeed() {
    printf "Please hold, sampling disk speed of ${1}\r" > /dev/tty
    sleep 10
    iostat -c 2 -d -w ${wdelay} "${1}" | tail -1 | awk '{printf "%0.2f", $3}'
    printf "                                            \r" > /dev/tty
}

getdisksize() {
    disksize=`(cat /var/run/dmesg.boot; dmesg) | egrep "^${1}:.* byte sectors.*" | tail -1 | sed -n 's/^[a-z0-9]*: \([0-9]*\)MB .*$/\1/p'`

    if [ -z "${disksize}" ]; then
        disksize=0
    fi
    if [ "${disksize}" -eq 0 ]; then
        echo "Unable to determine disk ${1} size from dmesg file (not fatal but odd!)" > /dev/tty
    fi
    echo ${disksize}
}

approximatepasstime() {
    disksize=`getdisksize "${1}"`
    if [ "${disksize}" -gt 0 ]; then
        echo "The disk ${1} appears to be ${disksize} MB.        "
        speed=`samplediskspeed "${1}"`
        echo "${disksize} ${speed}" | awk '{printf "Disk is reading at about %0.0f MB/sec        \nThis suggests that this pass may take around %0.0f minutes\n", $2, $1 / $2 / 60}'
    else
        echo "Unable to determine disk ${1} size from dmesg file (not fatal but odd!)"
    fi
}


echo "sol.net disk array test v2"

while ${notselected}; do
    echo ""
    echo "1) Use all disks (from camcontrol)"
    echo "2) Use selected disks (from camcontrol|grep)"
    echo "3) Specify disks"
    echo "4) Show camcontrol list"
    echo ""
    echo -n "Option: "

    read opt
    case "${opt}" in
        1)    disklist=`camcontrol devlist | sed 's:.*(::;s:).*::;s:,pass[0-9]*::;s:pass[0-9]*,::' | egrep '^[a]*da[0-9]+$' | tr '\012' ' '`;;
        2)    echo ""
            echo -n "Enter grep match pattern (e.g. ST150176): "
            read pat
            disklist=`camcontrol devlist | grep "${pat}" | sed 's:.*(::;s:).*::;s:,pass[0-9]*::;s:pass[0-9]*,::' | egrep '^[a]*da[0-9]+$' | tr '\012' ' '`;;
        3)    echo ""
            echo -n "Enter disk devices separated by spaces (e.g. da1 da2): "
            read disklist;;
        4)    camcontrol devlist | more -E
            echo -n "Press Return: "
            read ret
            continue;;
    esac
    if [ -z "${disklist}" ]; then
        echo ""
        echo "ERROR: No disks selected!"
    else
        patlist='('`echo ${disklist} | tr ' ' '|'`')'

        echo ""
        (
        echo "Selected disks: ${disklist}"
        camcontrol devlist | egrep '[(,]'"${patlist}"'[,)]'
        ) | more -E
        echo -n "Is this correct? (y/N): "
        read ans
        case "${ans}" in
            y|Y|yes|YES)    notselected=false;;
        esac
    fi
done

################################
#disklist="${disklist} x"

echo "Performing initial serial array read (baseline speeds)"
date
for disk in ${disklist}; do
    dd if=/dev/${disk} of=/dev/null bs=1048576 2> /tmp/sat.${disk}.err > /tmp/sat.${disk}.out &
    pid=$!
    sleep ${wdelay}
    getdisksize     ${disk} > /tmp/sat.${disk}.size.out
    samplediskspeed ${disk} > /tmp/sat.${disk}.sspeed.out
    kill "${pid}" 2> /dev/null || true
    sleep 5
done
date
echo "Completed: initial serial array read (baseline speeds)"

for disk in ${disklist}; do
    if [ -s /tmp/sat.${disk}.err ]; then
        sed '/ records in$/d;/ records out$/d;/ bytes transferred in /d;s:^:!!ERROR!! :' < /tmp/sat.${disk}.err
    fi
done

(
    for disk in ${disklist}; do
        egrep -v '^(0|0\.00)$' /tmp/sat.${disk}.sspeed.out
    done
) | awk 'BEGIN {sum=0}{sum=sum+$1} END {print sum/NR}' > /tmp/sat.average.sspeed.out
echo ""
avgspeed=`cat /tmp/sat.average.sspeed.out`
echo "Array's average speed is ${avgspeed} MB/sec per disk"

echo ""
echo "Disk    Disk Size  MB/sec %ofAvg"
echo "------- ---------- ------ ------"
for disk in ${disklist}; do
    echo "${disk}" `cat /tmp/sat.${disk}.size.out` `cat /tmp/sat.${disk}.sspeed.out` "${avgspeed}" | awk '{percent=100 * $3 / $4; printf "%-7s %8sMB %6.0f %6.0f", $1, $2, $3, percent; if (percent < 92) printf " --SLOW--"; if (percent > 107) printf " ++FAST++"; printf "\n"}'
done

pass=initial

echo ""
echo "Performing ${pass} parallel array read"
date
for disk in ${disklist}; do
    dd if=/dev/${disk} of=/dev/null bs=1048576 ${climit} 2> /tmp/sat.${disk}.err > /tmp/sat.${disk}.out || true &
done

approximatepasstime ${disklist}

sleep ${wdelay}

for disk in ${disklist}; do
    samplediskspeed ${disk} > /tmp/sat.${disk}.pspeed.out
done

echo ""
echo "                   Serial Parall % of"
echo "Disk    Disk Size  MB/sec MB/sec Serial"
echo "------- ---------- ------ ------ ------"
for disk in ${disklist}; do
    echo "${disk}" `cat /tmp/sat.${disk}.size.out` `cat /tmp/sat.${disk}.sspeed.out` `cat /tmp/sat.${disk}.pspeed.out` | awk '{if ($3 != 0) {percent=100 * $4 / $3} else {percent = 0}; printf "%-7s %8sMB %6.0f %6.0f %6.0f", $1, $2, $3, $4, percent; if (percent < 92) printf " --SLOW--"; if (percent > 107) printf " ++FAST++"; printf "\n"}'
done

echo ""
echo "Awaiting completion: ${pass} parallel array read"

wait

date
echo "Completed: ${pass} parallel array read"

for disk in ${disklist}; do
    if [ -s /tmp/sat.${disk}.err ]; then
        sed '/ records in$/d;/ records out$/d;/ bytes transferred in /d;s:^:!!ERROR!! :' < /tmp/sat.${disk}.err
    fi
done

(
    for disk in ${disklist}; do
        grep ' bytes transferred in ' /tmp/sat.${disk}.out /tmp/sat.${disk}.err
    done
) | awk 'BEGIN {sum=0}{sum=sum+$5} END {printf "%0.0f", sum/NR}' > /tmp/sat.average.time

avgtime=`cat /tmp/sat.average.time`
echo ""
echo "Disk's average time is ${avgtime} seconds per disk"
echo ""
echo "Disk    Bytes Transferred Seconds %ofAvg"
echo "------- ----------------- ------- ------"
for disk in ${disklist}; do
    echo "${disk}" "${avgtime}" `grep -h " bytes transferred in" /tmp/sat.${disk}.out /tmp/sat.${disk}.err` "${avgtime}" | awk '{ if ($2 != 0) {percent=100 * $7 / $2} else {percent = 0}; printf "%-7s %17s %7.0f %6.0f", $1, $3, $7, percent; if (percent < 92) printf " ++FAST++"; if (percent > 107) printf " --SLOW--"; printf "\n"}'
done

echo ""
echo "Performing ${pass} parallel seek-stress array read"
date
for disk in ${disklist}; do
    dd if=/dev/${disk} of=/dev/null bs=1048576 ${climit} 2> /tmp/sat.${disk}.err > /tmp/sat.${disk}.out || true &
done
for i in 1 2 3 4 5; do
    sleep ${wdelay}
    for disk in ${disklist}; do
        dd if=/dev/${disk} of=/dev/null bs=1048576 ${climit} 2> /dev/null > /dev/null || true &
    done
done

approximatepasstime ${disklist}

sleep ${wdelay}

for disk in ${disklist}; do
    samplediskspeed ${disk} > /tmp/sat.${disk}.pspeed.out
done

echo ""
echo "                   Serial Parall % of"
echo "Disk    Disk Size  MB/sec MB/sec Serial"
echo "------- ---------- ------ ------ ------"
for disk in ${disklist}; do
    echo "${disk}" `cat /tmp/sat.${disk}.size.out` `cat /tmp/sat.${disk}.sspeed.out` `cat /tmp/sat.${disk}.pspeed.out` | awk '{if ($3 != 0) {percent=100 * $4 / $3} else {percent = 0}; printf "%-7s %8sMB %6.0f %6.0f %6.0f\n", $1, $2, $3, $4, percent}'
done

echo ""
echo "Awaiting completion: ${pass} parallel seek-stress array read"

wait

date
echo "Completed: ${pass} parallel seek-stress array read"

for disk in ${disklist}; do
    if [ -s /tmp/sat.${disk}.err ]; then
        sed '/ records in$/d;/ records out$/d;/ bytes transferred in /d;s:^:!!ERROR!! :' < /tmp/sat.${disk}.err
    fi
done

(
    for disk in ${disklist}; do
        grep ' bytes transferred in ' /tmp/sat.${disk}.out /tmp/sat.${disk}.err
    done
) | awk 'BEGIN {sum=0}{sum=sum+$5} END {printf "%0.0f", sum/NR}' > /tmp/sat.average.time

avgtime=`cat /tmp/sat.average.time`
echo ""
echo "Disk's average time is ${avgtime} seconds per disk"
echo ""
echo "Disk    Bytes Transferred Seconds %ofAvg"
echo "------- ----------------- ------- ------"
for disk in ${disklist}; do
    echo "${disk}" "${avgtime}" `grep -h " bytes transferred in" /tmp/sat.${disk}.out /tmp/sat.${disk}.err` "${avgtime}" | awk '{ if ($2 != 0) {percent=100 * $7 / $2} else {percent = 0}; printf "%-7s %17s %7.0f %6.0f", $1, $3, $7, percent; if (percent < 92) printf " ++FAST++"; if (percent > 107) printf " --SLOW--"; printf "\n"}'
done



[NugentS]

That one?



[joeschmuck]

That one?

Yup.



[Patrick M. Hausen]

Why didn't you edit yout last post? Now we still have this wall of text in the thread, only we have the script twice!



[Ericloewe]

I ran a neural network to fix that, the output of which drives a series of actuators which instruct my computer to do various things taking advantage of a privileged execution environment, allowing for the targeted deletion of textual elements in the given post. Which is to say, I clicked edit and changed the ICODEs to CODEs.



[NugentS]

Why didn't you edit yout last post? Now we still have this wall of text in the thread, only we have the script twice!

I wanted to see the difference, which I didn't get around to in time



[jsnas]

@NugentS Thanks for posting the script.



[jsnas]

Since it seems that the script uses camcontrol (which is freeBSD and not present on Linux), there's absolutely no surprise about that.

Somebody would need to re-work it to use hdparm and other tools to look at disks.

Agreed, that would be great if someone could map the various tools to the linux equivalent to get it working with SCALE.



[jamiejunk]

@jgreco I'm having trouble finding the script on your FTP server as well. Using Transmit FTP client on a mac. Check out what i'm seeing in the gif below.



[Patrick M. Hausen]

The incoming directory does not support listing files. You need to fetch the file in one go with the complete URL. Use wget, curl or FreeBSD fetch.



[gdarends]

Hi,

Does this script run the tests in parallel? How do I know how far along it is?

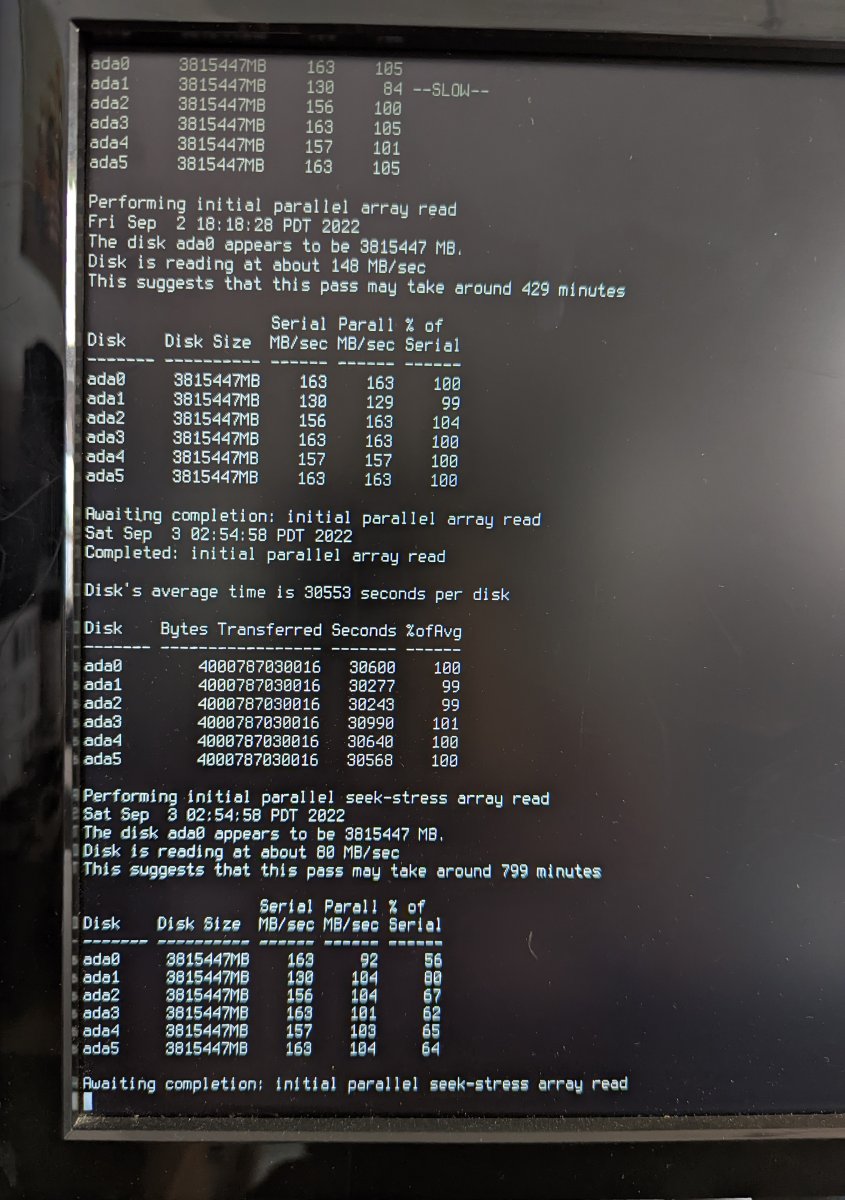

I have it running about 12hrs now, on 6 HDDs.
