Setting Up SMB Private Dataset Shares

SMB Home Share is a legacy feature for organizations looking to maintain existing SMB configurations. TrueNAS removed the home share option from the SMB share Purpose list in 24.04 (Dragonfish). The SMB share Other Options includes a home share legacy option but it is not recommended for new shares, it is for organizations still using the legacy home shares option of adding a single SMB share to provide a personal directory for every user account. Future TrueNAS releases can introduce instability or require configuration changes affecting this legacy feature.

Microsoft has eliminated the Home Share feature in Windows 11 and deprecated it in Windows 10. Microsoft ending support for Home Shares is planned for October 2025.

TrueNAS does not recommend setting up new home shares and has removed the Use as Home Share option, found in the Other Options section of the Advanced Options screen for the Add SMB and Edit SMB screens. The Private SMB Datasets and Shares setting replaces the home shares option and is the recommended method to provide users with a private personal folder they access through an SMB share. Follow the instructions in the Adding Private SMB Datasets and Shares section below to set up private and personal shares.

TrueNAS allows creating one private directory per user, but allows creating as many non-private directories as desired or needed. Users can create as many directories as needed in their private share through Windows File Explorer.

TrueNAS does not control what Windows allows through the File Explorer. If the personal directories show in File Explorer, use Windows file properties and access control to hide the folder in the share.

After creating a dataset and SMB share, use the path to this dataset as the home directory for each user with a private share directory. Other users who do not require a private personal share can use a path to another dataset for their home directory. This replaces the legacy home share personal home directory when connecting to the share.

Home directories are not visible to or accessible by other users. Private directories created for users do not display in the datasets table on the Datasets screen. They are visible on the Edit User screen in the file explorer section under the Home Directory field.

Other options for configuring individual user directories include:

• Configure a single share on the TrueNAS and provision individual user directories on the client OS.
• Create a single SMB share and configure the ACL so that users can create individual directories on the share that inherit write access for the user and grant read access to the administrator.
• Create an SMB share using the Private SMB datasets and shares preset, and then create per-user datasets under the umbrella of a single share when users access the share.

Creating an SMB private dataset and share requires provisioning users or joining Active Directory, and configuring the system storage and share.

Private directories are not intended for every user on the system. When using the Private SMB Datasets and Shares share Purpose preset and configuring it as a home directory the system TrueNAS does not show the private directories to all users with access to the root level of the share.

Examples of setting up private SMB shares are those for backups, system configuration, and users or departments that need to keep information private from other users.

You can manually add users and groups in TrueNAS, or configure groups in Active Directory and add users to each group, and then have AD add the users and group to TrueNAS. After adding users and groups, configure private directories and home directories for the users and group(s). Before setting up SMB shares, check system alerts to verify no errors related to connections to Active Directory are listed. Resolve any issues with Active Directory before proceeding. If Active Directory cannot bind with TrueNAS, you cannot start the SMB service after making changes.

To add private shares and datasets for users that require home directories:

1. Create the share (and dataset) using the Private SMB Datasets and Shares preset.

2. Configure the share dataset ACL to use the NFSv4_HOME preset.

3. Create users either manually or through Active Directory.

4. Add the home directory path to the dataset where you want to create the private directory, and set permissions.

You can use an existing dataset or create a new dataset for the share. We recommend using the Add SMB screen to create a new share and dataset for this procedure. While you can add a share while creating the dataset on the Add Dataset screen, this method requires editing the share settings afterward. In general, when creating a simple SMB share and dataset you can use either method, but if customizing the dataset, use the Add Dataset screen to access dataset advanced setting options. To configure and customize an SMB share, using the Add SMB share method is better as it provides access to the advanced setting options for shares, meaning you do not have to edit settings afterward.

To create SMB private datasets and shares, go to Shares and click Add on the Windows (SMB) Shares widget to open the Add SMB screen.

1. Enter or browse to select the path to where you want to add the share dataset, then click Create Dataset. This populates the Path for the share.

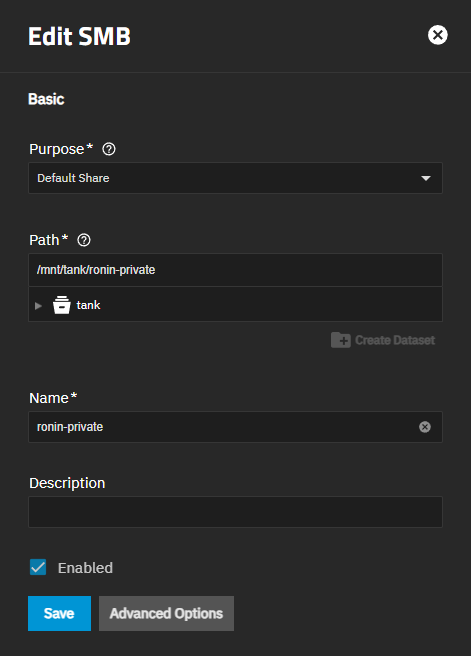

   Or, if the dataset is already created, select the share on the SMB widget, click edit, then change the Purpose setting to Private SMB Datasets and Shares. If creating a new share and dataset using the Add SMB screen, select Private SMB Datasets and Shares from the Purpose dropdown list before clicking Advanced Options to make other setting changes. See Step 3.

2. Enter a name for the dataset in the dialog field, then click Create Dataset. For example, creating a share and dataset named private.



   Follow naming conventions for:

   • Files and directories
   • Share names

   The dataset name populates the share Name field and becomes the share name. The Path field is updated with the dataset name. The share and dataset must have the same name.

3. Select Private SMB Dataset and Share on the Purpose dropdown list. Click Advanced Options to show the additional settings to configure additional share setting options.



4. (Optional) Select Enable for audit logging.

5. Scroll down to Other Options to select Export Recycle Bin, which allows moving files deleted in the share to a recycle bin in that dataset.

   Files are renamed to a per-user subdirectory within .recycle directory at the root of the SMB share if the path is the same dataset as the share. If the dataset has a nested dataset, the directory is at the root of the current dataset. If this is the case, there is no automatic deletion based on file size.

6. Click Save.

7. Enable or restart the SMB service when prompted and make the share available on your network.

When prompted by the system to configure the dataset ACL, accept the option. The Edit ACL screen opens.

Dataset ACL permissions are configured on the Edit ACL screen. The user assigned the private directory share does not need to be added as an ACL entry in the dataset ACL. Add an ACL entry to the dataset ACL to grant another user, other than the private share user or a group of users, to allow access to the private directory.

If on the Datasets screen, select the dataset row for the share dataset, then click Edit on the Permissions widget to open the Edit ACL screen. See Setting Up Permissions for more information on editing dataset permissions.

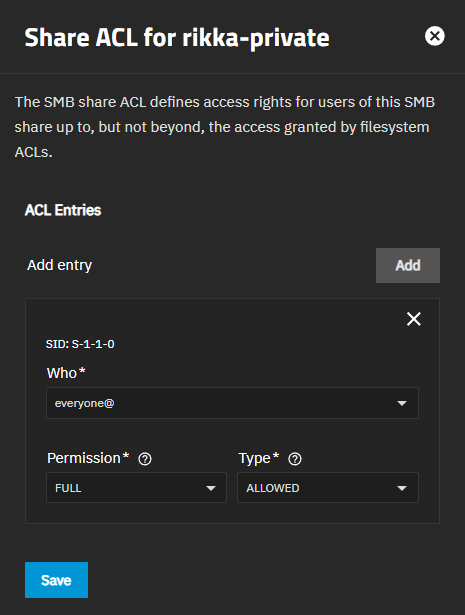

If starting on the Shares screen and not prompted by the system to configure the ACL permissions or if you closed the prompt window, select the share on the Windows (SMB) Share widget, then click Edit Filesystem ACL to open the Edit ACL screen. Do not select the option to edit the share permissions. Share permissions only apply to the share and not the dataset the share uses for storage. See SMB Shares for detailed information on editing the share dataset permissions.

Set the permission for the private dataset to allow additional users or a group if others are permitted to access the private directory share.

Click the Owner dropdown, select the administration user with full control, then repeat for Group. You can set the owning group to your Active Directory domain admins. Click Apply Owner and Apply Group to apply the changes.

Click Use Preset and choose NFS4_HOME. If the dataset has a POSIX ACL choose HOME. Click Continue, then click Save Access Control List.

Next, click Add Entry to add entries for each user that needs access to the dataset. To assign required permissions, select User in Who and locate the user name on the User dropdown list. Select the required permissions. Repeat for each user that needs access. Alternatively, if you added users to a group, select, set Who to Group and locate the group on the dropdown list.

After adding all users or groups and setting the required permissions for each, click Save Access Control List.

Add users by joining Active Directory to TrueNAS, or manually create users in TrueNAS. Edit existing users or the group to add home directories and grant access to private datasets and shares.

If manually adding existing users to a group in TrueNAS, go to Groups, click Add to create the group, then either configure Active Directory to assign the group or manually add the group to individual users in TrueNAS.

Go to Credentials > Users and click Add to create new users, or select the user on the Users screen and click Edit. If adding a new user, enter the name and password information.

Next, add bulitin-users in Auxilliary Group, or for users in a group, add the group name.

Enter or browse to select the path to the dataset where you want to create home directories. For private datasets, create the private directory for the share. By default, the user Home Directory is set to /var/empty. You must change this to the path for the new parent dataset created for home directories. Select the path /mnt/poolname/datasetname/username where poolname is the name of the pool where you added the share dataset, datasetname is the name of the dataset associated with the share, and username is the username. For home directories, make the username all lowercase.

Select the permissions below the path field. Configure permissions for the user of the private share to allow login access to the share and the ability to see a folder matching their username. Select Create Home Directory.

Click Save. TrueNAS adds the user and creates the home directory for the user. The home directory shows on the Edit User screen but not on the Datasets screen.

Why the change?

TrueNAS uses the pam_mkhomdir PAM module in the pam_open_session configuration file to automatically create user home directories if they do not exist. pam_mkhomedir returns PAM_PERM_DENIED if it fails to create a home directory for a user, which eventually turns into a pam_open_session() failure. This does not impact other PAM API calls, for example, pam_authenticate().

TrueNAS 24.04 (or newer) does not include the customized version of pam_mkhomedir used in TrueNAS 13.0 and earlier or 13.3 releases. This version of pam_mkhomedir specifically avoided trying to create the /nonexistent directory. This led to some circumstances where users could create the /nonexistent directory on TrueNAS versions before 24.04.

Starting in TrueNAS 24.04 (Dragonfish), the root file system of TrueNAS is read-only, which prevents pam_mkhomdir from creating the /nonexistent directory in cases where this previously occurred. This results in a permissions error if pam_open_session() is called by an application for a user account that has Home Directory set to /nonexistent.

You can use Active Directory or LDAP to create share users.

If not already created, add a pool, then join Active Directory.

Go to Storage and create a pool.

Next, set up the Active Directory that you want to share resources with over your network.

When creating the share for this dataset, use the SMB preset for the dataset but do not add the share from the Add Dataset screen.

Do not share the root directory!

Go to Shares and follow the instructions listed above using the Private SMB Dataset and Share preset, and then modify the file system permissions of the dataset to use the NFSv4_HOME ACL preset.
