Seeing Less free space than expected

[Justin Aggus]

I have a server with 12x 8tb drives.
Wanting to use Z2,
Based on what I could find, I would expect the size to be:
8x10 = 80tb
including the 1024/1000 that is down to:
7.352x10= 73.52tb
including the 2gb swap per disk
7.35x10 = 73.5tb
including 63/64 zfs reserved/metadata:
72.4tb

And when I go to the volume manager and create the disk, this is about right,
It says the disks will be 72.75 Tb
but after I create the volume it shows up as 64.2tb
What did I miss, where did that last 8tb go?



[BigDave]

Please see the ZFS RAID size and reliability calculator found here;
https://jsfiddle.net/Biduleohm/paq5u7z5/1/embedded/result/
Not sure of your calculations, but I think you forgot about parity space.
@Bidule0hm explains his creation in this post.
https://forums.freenas.org/index.php?threads/zfs-raid-size-and-reliability-calculator.28191/



[Justin Aggus]

I have 12 drives, but calculated space based on 10 drives (2 were left off for parity)
That calculator seems to get the same result I came up with ~72TB.

I'm assuming freenas isn't enforcing the "Minimum recommended free space" and hiding that space from me right?

EDIT:
Found something Interesting, with the same 12 drives I can make a Z3 array that is 61.2TB.
So apparently with this setup tripple parity is a lot more efficient in terms of space, why is that?



[sef]

There is also overhead by ZFS, which can eat a sizable chunk. I don't know of a calculator for that, sorry.



[BigDave]

I'm assuming freenas isn't enforcing the "Minimum recommended free space" and hiding that space from me right?

You are correct, it is not hiding that.



[ca18det]

I have just setup a VM of FreeNAS and made myself some virtual hard drives.

Indeed, I am missing space. Im using 5 x 5GB (5.4g) virtual hard drives for testing before deploying it.

The calculator shows only 15gb of the 25gb available on Z1, while even on stripe only 19gb available.


Z1 = 1 parity drive
Stripe = no parity

Why does Z1 take up 2 full drives worth of space
and stripe takes one full drive.

Im not liking this.. obviously I'm missing something.


my mdadm raid5 (one parity) gives me the correct usable space.



[ca18det]

There is also overhead by ZFS, which can eat a sizable chunk. I don't know of a calculator for that, sorry.

Why. Im losing one drive to overhead and another to single parity (Z1) thats utter bullshit.


edit- i typed bull $.hit not bullcrap. Thats bullcrap



[gpsguy]

One problem with tiny drives in a VM scenario, is that FreeNAS sets aside a 2GB partition for swap. On a 3TB drive, it's insignificant. On a 5GB drive, it's significant.

While the system should be sized so that swap doesn't kick in, the swap file is there to assist with drive replacements, when the sizes of the new and old don't match exactly.

I have just setup a VM of FreeNAS and made myself some virtual hard drives.

Indeed, I am missing space. Im using 5 x 5GB (5.4g) virtual hard drives for testing before deploying it.



[sef]

What gpsguy said: 5x5gb - 5x2gb = 23gb total. With RAIDZ1, that's about 18gbytes available max.

The numbers you posted seem largely reasonable to me.



[ca18det]

So why does stripe not report 23+ gb space ? Can i disable swap for testing?



[gpsguy]

Sure.

One used to be able to set the swap size to 0 in the webGUI, but the current docs say onr needs to enter a non-zero integer in that box. You might want to see if you can put a 0 in there. If that doesn't work, you could create the pool manually and import it into FreeNAS. FreeNAS prefers that you use GPTID's rather than device names.

Can i disable swap for testing?



[danb35]

One used to be able to set the swap size to 0 in the webGUI, but the current docs say onr needs to enter a non-zero integer in that box.

It will still allow a 0 (just tested on 9.10.1-U4), and the page itself says you can use a 0. If the docs say it needs to be non-zero, sounds like a bug in the docs.



[ca18det]

Would zeroing swap defeat any zfs advantages in redundancy or speed ? The system will be running on a ssd drive, and eventually have a ssd cache for the raid.



[Justin Aggus]

Raid Z2, 8tb disks:
10+2p, expected 72.0, actual 64.2, ratio 89.2%
9+2p, expected 64.8, actual 59.0, ratio 91.0%
8+2p, expected 57.6, actual 53.5, ratio 92.9%
7+2p, expected 50.4, actual 48.0, ratio 95.2%
6+2p, expected 43.2, actual 39.9, ratio 92.3%
5+2p, expected 36.0, actual 32.6, ratio 90.6%
4+2p, expected 28.8, actual 28.1, ratio 97.6%

Someone must know what is happening here?



[Stux]

TB vs TiB



[depasseg]

Raid Z2, 8tb disks:
10+2p, expected 72.0, actual 64.2, ratio 89.2%

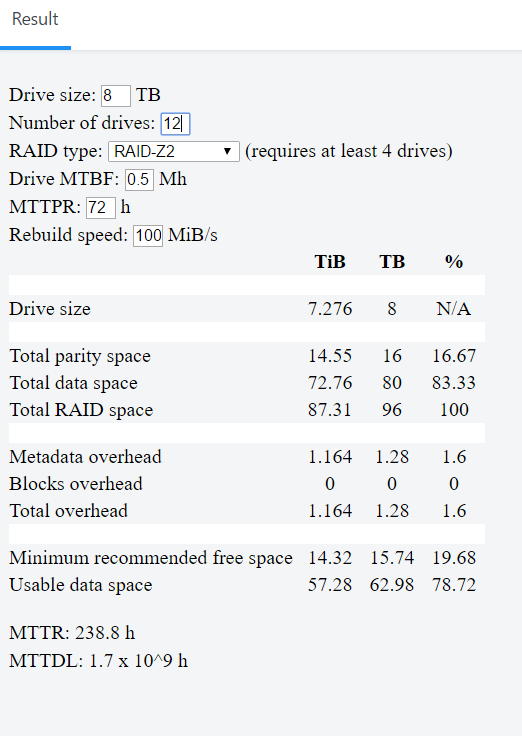

The "usable" number is the 80% value of total available data space. So in your example, according to the calc linked above, you get 62.9TB usable (which brings you to the suggested 80%) plus an additional 15.74TB of free space for a total actual usable of 78.64TB (or 71.6TiB). And of course, as you know, it's recommended to not go above 80% utilization.

View attachment upload_2016-11-15_7-45-49.png



[depasseg]

And please use the proper units - either TB or TiB - when reporting what you are seeing (Tb, tb, TB, TiB all mean different things).



[Justin Aggus]

TB - TiB doesn't help.

10+2p, expected 80TB, 72.0TiB, actual 64.2TiB, ratio 89.2%
I'm still missing over 10% space as far as I can see



[depasseg]

actual 64.2TiB, ratio 89.2%

I might have missed it, but where is this data coming from?



[Justin Aggus]

Logging into freenas webui and looking at the storage page
