SOLVED Seagate Exos 5E8 vs 7E8 8TB disks usage

[Daisuke]

The 5E8 is a 5400RPM drive and 7E8 is a 7200RPM drive. From your experience, can I mix 5E8 with 7E8 in a 12 disks pool? The 5400 will generally be quieter and run cooler than the 7200 but I got some good prices on the 7E8.



[ChrisRJ]

12 drives is a pretty large pool. Hopefully not RAIDz1



[Alecmascot]

The 5E8 is SMR.....



[Daisuke]

The 5E8 is SMR.....

Great info, I had no idea. That answers my question, I need to get the 7E8 model.

12 drives is a pretty large pool. Hopefully not RAIDz1

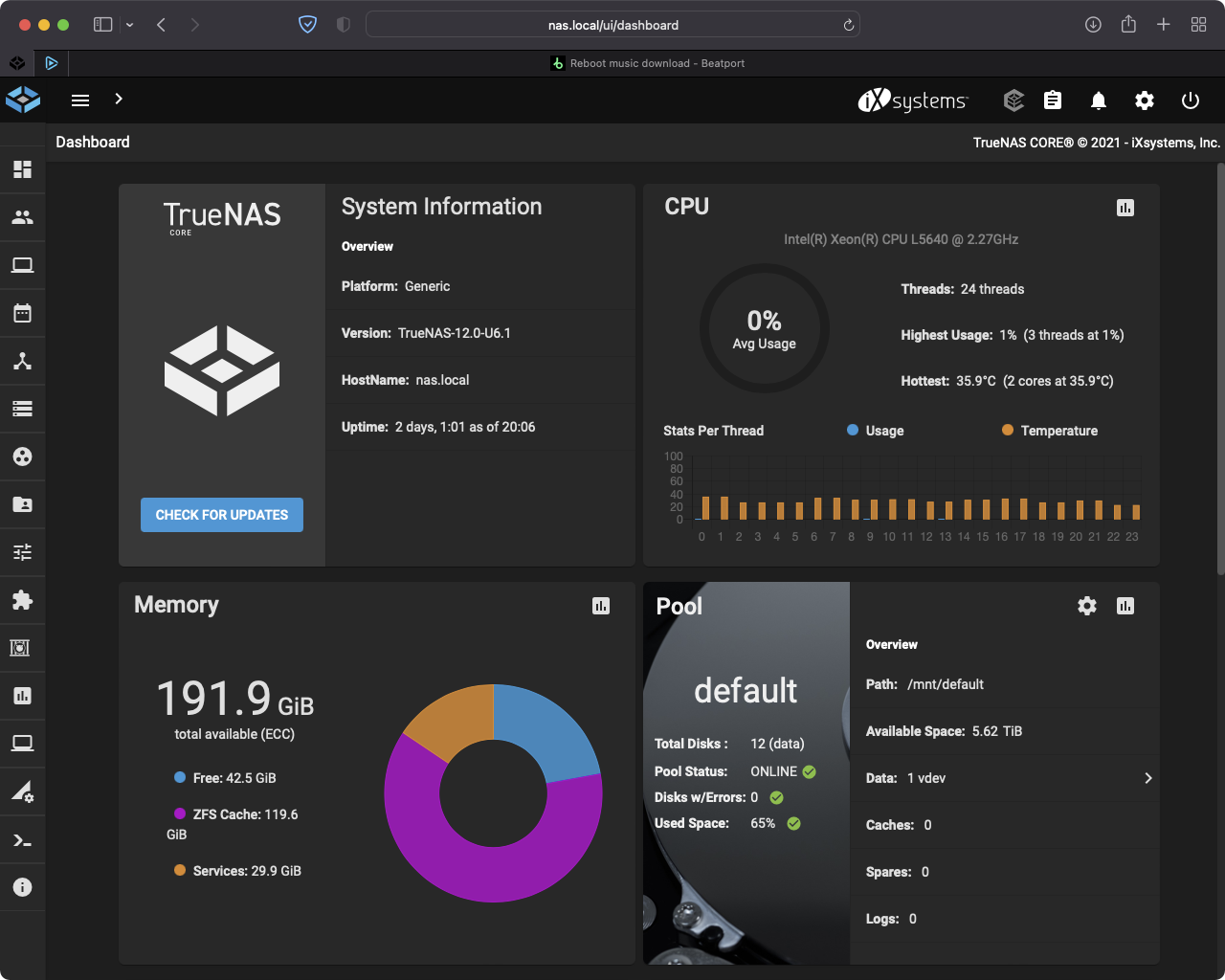

I'm using RaidZ2 with a extra disk on the side (13 drives), in case of emergency replacement.



[Daisuke]

Quick question, is there a thread with a list of supported disk models? Not SMR.

I’m adding the models from my research:
- HGST Ultrastar He8
- Seagate EXOS 7E8
- WD Ultrastar HC320



[Samuel Tai]

List of known SMR drives

Hard drives that write data in overlapping, "shingled" tracks, have greater areal density than ones that do not. For cost and capacity reasons, manufacturers are increasingly moving to SMR, Shingled Magnetic Recording. SMR is a form of PMR...

www.truenas.com



[Daisuke]

@Samuel Tai thanks for the link, do you have one for Non-SMR?



[Samuel Tai]

If it's not in that resource, you can assume the drive is non-SMR.



[Redcoat]

WD Red

@TECK

"WD Red" should not be on a list of "supported disk models? Not SMR.", at least not without qualification.

May I suggest that you edit your post to prevent possibly misleading a reader?



[Daisuke]

May I suggest that you edit your post to prevent possibly misleading a reader?

I removed it, thank you.
