SAS Adapters & Firmware

NugentS

MVP
Joined
Apr 16, 2020
Messages
2,947
I have 2 SAS Adapters in my TrueNAS.
One built into the Supermicro Motherboard and one add in card. I do not boot off these cards (and don't want to)

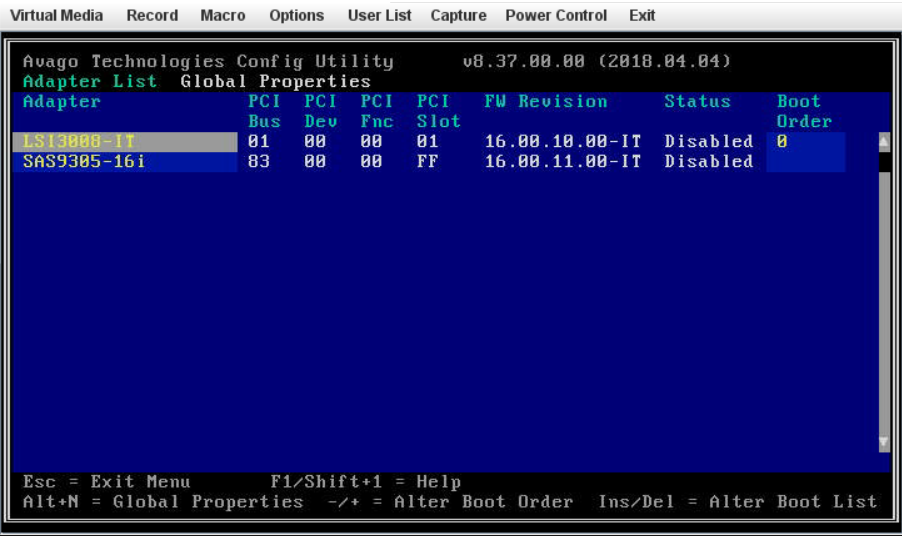

On boot I get:

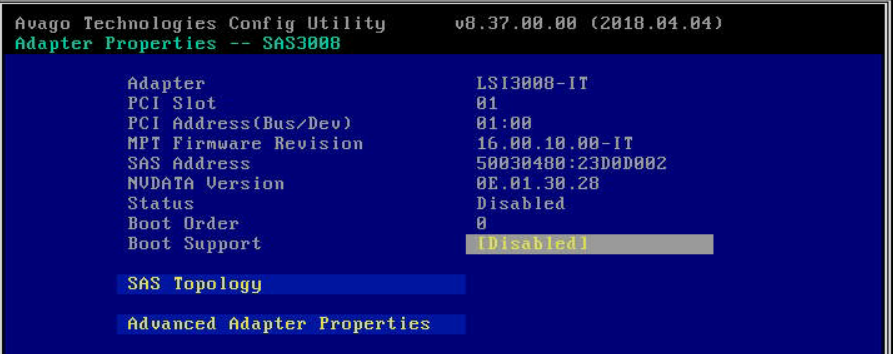

The LSI3008-IT (SMC Built in) has:

Its the latest firmware I can find from SMC

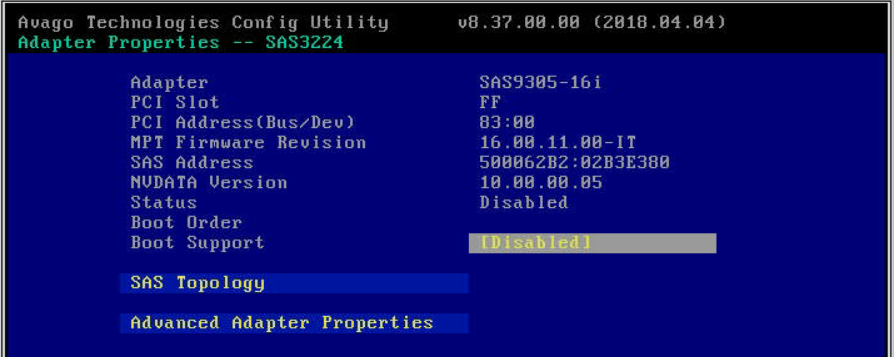

The SAS9305-16i has:


Have I got the right firmware? I get confused between different models of SAS cards and how they relate to different firmware. I did just download a shiny new version from broadcom dated 07/12/2020 (US Date) so (12/07/2020 UK Date). Version 16.00.12.00
