Noob in trouble...disks not showing?

[wachen]

Way back in 2014 or 2015, I built my own box running FreeNAS 9.2.1.2, with 5x2TB drives. It was up and running without problems. We moved to Singapore in 2017. I brought the NAS box with me. I never set it up and just left it in a box in the storage room gathering dust..until last week.

The wife asked for some old photos, which I know are stored on the NAS. While I am able to power up the system and get to the web UI. The system is not detecting any disks (Storage --> View Disks just shows blank). The disks are spinning for sure.

I know this is rather vague, but I don't even know where to start. I saw some previous threads where the experts asked to see the output of "zpool status". When I typed that in the shell, the response says "no pools available"

I don't want to do anything stupid to accidentally erase the disk or lose any data. Any suggestions? TIA



[Davvo]

Try zpool import.



[sretalla]

which might lead you to looking at camcontrol disklist and even dmesg if you get no output from each.



[Arwen]

From the build date of 2014 or 2015, it might be using UFS with software RAID. So even if zpool import comes back with nothing, their is still hope.

Of course most of us either never used FreeBSD with UFS & it's software RAID. Or it has been long enough that we have forgotten diagnostic commands.



[Patrick M. Hausen]

which might lead you to looking at camcontrol disklist and even dmesg if you get no output from each.

Code:

camcontrol devlist
gpart show

for starters ...



[sretalla]

Indeed devlist... my memory is shot today.



[wachen]

Thanks for jumping in, everyone.

Here is the response from camcontrol devlist and gpart show:

[root@freenas ~]# camcontrol devlist
<Kingston DT Mini Fun G2 PMAP> at scbus7 target 0 lun 0 (da0,pass0)

[root@freenas ~]# gpart show
=> 63 15636801 da0 MBR (7.5G)
63 1930257 1 freebsd (942M)
1930320 63 - free - (31k)
1930383 1930257 2 freebsd [active] (942M)
3860640 3024 3 freebsd (1.5M)
3863664 41328 4 freebsd (20M)
3904992 11731872 - free - (5.6G)

=> 0 1930257 da0s1 BSD (942M)
0 16 - free - (8.0k)
16 1930241 1 !0 (942M)

=> 0 1930257 da0s2 BSD (942M)
0 16 - free - (8.0k)
16 1930241 1 !0 (942M)



[wachen]

Here is the response from dmesg:

Code:

Copyright (c) 1992-2013 The FreeBSD Project.
Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
        The Regents of the University of California. All rights reserved.
FreeBSD is a registered trademark of The FreeBSD Foundation.
FreeBSD 9.2-RELEASE-p3 #0 r262572+825d682: Sat Mar  1 10:02:19 PST 2014
    root@build.ixsystems.com:/home/jkh/checkout/freenas/os-base/amd64/tank/home/jkh/checkout/freenas/FreeBSD/src/sys/FREENAS.amd64 a
md64
gcc version 4.2.1 20070831 patched [FreeBSD]
CPU: AMD Athlon(tm) II X2 260 Processor (3200.19-MHz K8-class CPU)
  Origin = "AuthenticAMD"  Id = 0x100f63  Family = 0x10  Model = 0x6  Stepping = 3
  Features=0x178bfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,MMX,FXSR,SSE,SSE2,HTT>
  Features2=0x802009<SSE3,MON,CX16,POPCNT>
  AMD Features=0xee500800<SYSCALL,NX,MMX+,FFXSR,Page1GB,RDTSCP,LM,3DNow!+,3DNow!>
  AMD Features2=0x37ff<LAHF,CMP,SVM,ExtAPIC,CR8,ABM,SSE4A,MAS,Prefetch,OSVW,IBS,SKINIT,WDT>
  TSC: P-state invariant
real memory  = 8589934592 (8192 MB)
avail memory = 7981789184 (7612 MB)
Event timer "LAPIC" quality 400
ACPI APIC Table: <122310 APIC1951>
FreeBSD/SMP: Multiprocessor System Detected: 2 CPUs
FreeBSD/SMP: 1 package(s) x 2 core(s)
 cpu0 (BSP): APIC ID:  0
 cpu1 (AP): APIC ID:  1
WARNING: VIMAGE (virtualized network stack) is a highly experimental feature.
ACPI Warning: Optional field Pm2ControlBlock has zero address or length: 0x0000000000000000/0x1 (20110527/tbfadt-586)
ioapic0 <Version 2.1> irqs 0-23 on motherboard
kbd1 at kbdmux0
cryptosoft0: <software crypto> on motherboard
aesni0: No AESNI support.
padlock0: No ACE support.
acpi0: <122310 XSDT1951> on motherboard
acpi0: Power Button (fixed)
acpi0: reservation of fee00000, 1000 (3) failed
acpi0: reservation of ffb80000, 80000 (3) failed
acpi0: reservation of fec10000, 20 (3) failed
acpi0: reservation of fed40000, 5000 (3) failed
acpi0: reservation of 100000, cfe00000 (3) failed
acpi0: reservation of 0, a0000 (3) failed
cpu0: <ACPI CPU> on acpi0
cpu1: <ACPI CPU> on acpi0
attimer0: <AT timer> port 0x40-0x43 irq 0 on acpi0
Timecounter "i8254" frequency 1193182 Hz quality 0
Event timer "i8254" frequency 1193182 Hz quality 100
atrtc0: <AT realtime clock> port 0x70-0x71 irq 8 on acpi0
Event timer "RTC" frequency 32768 Hz quality 0
hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0
Timecounter "HPET" frequency 14318180 Hz quality 950
Event timer "HPET" frequency 14318180 Hz quality 550
Event timer "HPET1" frequency 14318180 Hz quality 450
Timecounter "ACPI-fast" frequency 3579545 Hz quality 900
acpi_timer0: <32-bit timer at 3.579545MHz> port 0x808-0x80b on acpi0
pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
pci0: <ACPI PCI bus> on pcib0
pcib1: <ACPI PCI-PCI bridge> at device 1.0 on pci0
pci1: <ACPI PCI bus> on pcib1
vgapci0: <VGA-compatible display> port 0xd000-0xd0ff mem 0xd0000000-0xdfffffff,0xfebe0000-0xfebeffff,0xfea00000-0xfeafffff irq 18 at
 device 5.0 on pci1
pci1: <multimedia, HDA> at device 5.1 (no driver attached)
pcib2: <ACPI PCI-PCI bridge> irq 18 at device 10.0 on pci0
pci2: <ACPI PCI bus> on pcib2
re0: <RealTek 8168/8111 B/C/CP/D/DP/E/F/G PCIe Gigabit Ethernet> port 0xe800-0xe8ff mem 0xfdfff000-0xfdffffff,0xfdff8000-0xfdffbfff
irq 18 at device 0.0 on pci2
re0: Using 1 MSI-X message
re0: Chip rev. 0x2c000000
re0: MAC rev. 0x00200000
miibus0: <MII bus> on re0
rgephy0: <RTL8169S/8110S/8211 1000BASE-T media interface> PHY 1 on miibus0
rgephy0:  none, 10baseT, 10baseT-FDX, 10baseT-FDX-flow, 100baseTX, 100baseTX-FDX, 100baseTX-FDX-flow, 1000baseT, 1000baseT-master, 1
000baseT-FDX, 1000baseT-FDX-master, 1000baseT-FDX-flow, 1000baseT-FDX-flow-master, auto, auto-flow
re0: Ethernet address: 14:da:e9:76:7a:5f
ahci0: <ATI IXP700 AHCI SATA controller> port 0xc000-0xc007,0xb000-0xb003,0xa000-0xa007,0x9000-0x9003,0x8000-0x800f mem 0xfe9ffc00-0
xfe9fffff irq 22 at device 17.0 on pci0
ahci0: AHCI v1.10 with 4 3Gbps ports, Port Multiplier supported
ahcich0: <AHCI channel> at channel 0 on ahci0
ahcich1: <AHCI channel> at channel 1 on ahci0
ahcich2: <AHCI channel> at channel 2 on ahci0
ahcich3: <AHCI channel> at channel 3 on ahci0
ohci0: <AMD SB7x0/SB8x0/SB9x0 USB controller> mem 0xfe9fe000-0xfe9fefff irq 16 at device 18.0 on pci0
usbus0 on ohci0
ohci1: <AMD SB7x0/SB8x0/SB9x0 USB controller> mem 0xfe9fd000-0xfe9fdfff irq 16 at device 18.1 on pci0
usbus1 on ohci1
ehci0: <AMD SB7x0/SB8x0/SB9x0 USB 2.0 controller> mem 0xfe9ff800-0xfe9ff8ff irq 17 at device 18.2 on pci0
usbus2: EHCI version 1.0
usbus2 on ehci0
ohci2: <AMD SB7x0/SB8x0/SB9x0 USB controller> mem 0xfe9fc000-0xfe9fcfff irq 18 at device 19.0 on pci0
usbus3 on ohci2
ohci3: <AMD SB7x0/SB8x0/SB9x0 USB controller> mem 0xfe9fb000-0xfe9fbfff irq 18 at device 19.1 on pci0
usbus4 on ohci3
ehci1: <AMD SB7x0/SB8x0/SB9x0 USB 2.0 controller> mem 0xfe9ff400-0xfe9ff4ff irq 19 at device 19.2 on pci0
usbus5: EHCI version 1.0
usbus5 on ehci1
pci0: <serial bus, SMBus> at device 20.0 (no driver attached)
atapci0: <ATI IXP700/800 UDMA133 controller> port 0x1f0-0x1f7,0x3f6,0x170-0x177,0x376,0xff00-0xff0f at device 20.1 on pci0
ata0: <ATA channel> at channel 0 on atapci0
ata1: <ATA channel> at channel 1 on atapci0
pci0: <multimedia, HDA> at device 20.2 (no driver attached)
isab0: <PCI-ISA bridge> at device 20.3 on pci0
isa0: <ISA bus> on isab0
pcib3: <ACPI PCI-PCI bridge> at device 20.4 on pci0
pci3: <ACPI PCI bus> on pcib3
ohci4: <AMD SB7x0/SB8x0/SB9x0 USB controller> mem 0xfe9fa000-0xfe9fafff irq 18 at device 20.5 on pci0
usbus6 on ohci4
amdtemp0: <AMD CPU On-Die Thermal Sensors> on hostb4
acpi_button0: <Power Button> on acpi0
uart0: <16550 or compatible> port 0x3f8-0x3ff irq 4 flags 0x10 on acpi0
orm0: <ISA Option ROM> at iomem 0xc0000-0xcefff on isa0
amdsbwd0: <AMD SB600/SB7xx Watchdog Timer> at iomem 0xfec000f0-0xfec000f3,0xfec000f4-0xfec000f7 on isa0
sc0: <System console> at flags 0x100 on isa0
sc0: VGA <16 virtual consoles, flags=0x300>
vga0: <Generic ISA VGA> at port 0x3c0-0x3df iomem 0xa0000-0xbffff on isa0
atkbdc0: <Keyboard controller (i8042)> at port 0x60,0x64 on isa0
atkbd0: <AT Keyboard> irq 1 on atkbdc0
kbd0 at atkbd0
atkbd0: [GIANT-LOCKED]
wbwd0: HEFRAS and EFER do not align: EFER 0x2e DevID 0xff DevRev 0xff CR26 0xff
acpi_throttle0: <ACPI CPU Throttling> on cpu0
hwpstate0: <Cool`n'Quiet 2.0> on cpu0
Timecounters tick every 1.000 msec
ipfw2 (+ipv6) initialized, divert enabled, nat enabled, default to accept, logging disabled
DUMMYNET 0xfffffe0002b24c80 with IPv6 initialized (100409)
load_dn_sched dn_sched RR loaded
load_dn_sched dn_sched WF2Q+ loaded
load_dn_sched dn_sched FIFO loaded
load_dn_sched dn_sched PRIO loaded
load_dn_sched dn_sched QFQ loaded
usbus0: 12Mbps Full Speed USB v1.0
usbus1: 12Mbps Full Speed USB v1.0
usbus2: 480Mbps High Speed USB v2.0
usbus3: 12Mbps Full Speed USB v1.0
usbus4: 12Mbps Full Speed USB v1.0
usbus5: 480Mbps High Speed USB v2.0
usbus6: 12Mbps Full Speed USB v1.0
ugen0.1: <ATI> at usbus0
uhub0: <ATI OHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus0
ugen1.1: <ATI> at usbus1
uhub1: <ATI OHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus1
ugen2.1: <ATI> at usbus2
uhub2: <ATI EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus2
ugen3.1: <ATI> at usbus3
uhub3: <ATI OHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus3
ugen4.1: <ATI> at usbus4
uhub4: <ATI OHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus4
ugen5.1: <ATI> at usbus5
uhub5: <ATI EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus5
ugen6.1: <ATI> at usbus6
uhub6: <ATI OHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus6
uhub6: 2 ports with 2 removable, self powered
uhub0: 3 ports with 3 removable, self powered
uhub1: 3 ports with 3 removable, self powered
uhub3: 3 ports with 3 removable, self powered
uhub4: 3 ports with 3 removable, self powered
uhub2: 6 ports with 6 removable, self powered
uhub5: 6 ports with 6 removable, self powered
ugen5.2: <Kingston> at usbus5
umass0: <Kingston DT Mini Fun G2, class 0/0, rev 2.00/1.00, addr 2> on usbus5
umass0:  SCSI over Bulk-Only; quirks = 0x4000
umass0:7:0:-1: Attached to scbus7
da0 at umass-sim0 bus 0 scbus7 target 0 lun 0
SMP: AP CPU #1 Launched!
da0: <Kingston DT Mini Fun G2 PMAP> Removable Direct Access SCSI-0 device
da0: Serial Number 00187D1174B6EB1170002257
da0: 40.000MB/s transfers
da0: 7635MB (15636864 512 byte sectors: 255H 63S/T 973C)
da0: quirks=0x2<NO_6_BYTE>
Timecounter "TSC-low" frequency 1600093103 Hz quality 800
Trying to mount root from ufs:/dev/ufs/FreeNASs2a [ro]...
GEOM_RAID5: Module loaded, version 1.1.20130907.44 (rev 5c6d2a159411)
ZFS filesystem version: 5
ZFS storage pool version: features support (5000)



[Davvo]

Please use [CODE][/CODE] tags as per forum rules.



[sretalla]

I fixed the code tags for you.

It seems you simply don't have anything that resembles a disk other than the boot pool attached to the computer.

Check the connections for data and power to the disks.

We have also confirmed that your boot pool is UFS.



[nKk]

After you check the power and data cables go to BIOS and check if the disks are detected and try to auto detect them again.



[Davvo]

How are you attaching those disks to the motherboard?



[joeschmuck]

Take your time and do not panic. Do one thing at a time. This actually looks like an easy fix. If all the physical connections to the hard drives are there, I would suspect the BIOS battery likely lost it's power and your BIOS is reset to default.

While no one has said it, do not try to upgrade to a newer version of FreeNAS/TrueNAS. There are compatibility issues as I recall during certain upgrades. FreeNAS 9.2.1.2 is stable to do what you need.

Good Luck and it looks like you have lots of help here.



[wachen]

Thank you, @sretalla for fixing the code tag.

The drives are connected directly to the motherboard via the SATA ports on the motherboard.
At this point, seems like all things are pointing to hardware issues. There is quite a bit of good info here. Enough for me to poke around....hopefully it is something simple. Will report back.



[wachen]

the saga continues....

I replaced the BIOS battery and checked the cables. I am embarrassed to say that, indeed, some of the SATA cables were loose. Looks like the disks are now showing up in the responses to camcontrol devlist and gpart show see below. But, dmesg shows a bunch of errors (will post on a separate post as it is too long).

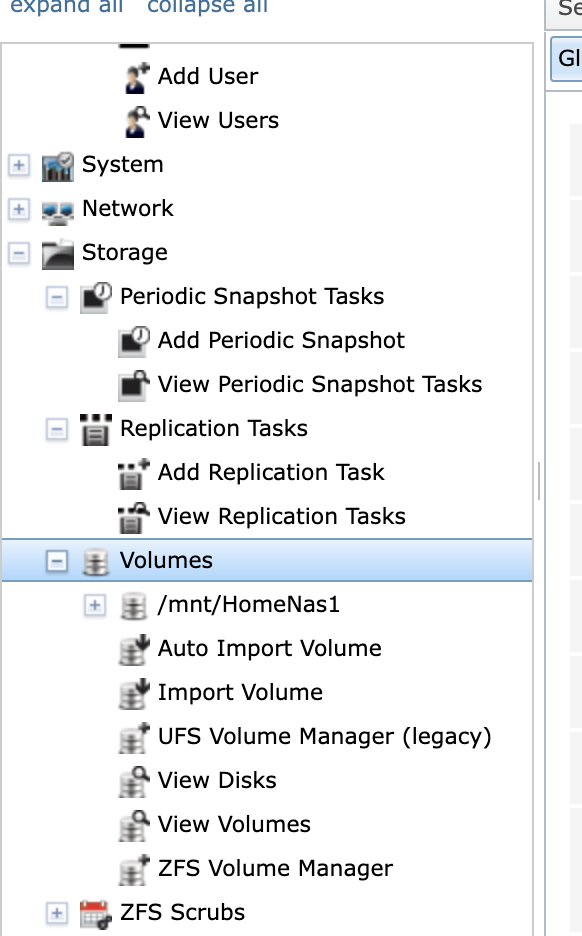

While the volume (HomeNas1) shows up in the web GUI, I am not able to mount it from my Mac.

Code:

[root@freenas ~]# camcontrol devlist
<TOSHIBA DT01ACA200 MX4OABB0>      at scbus0 target 0 lun 0 (ada0,pass0)
<ST2000VN000-1H3164 SC42>          at scbus1 target 0 lun 0 (ada1,pass1)
<WDC WD20EFRX-68EUZN0 80.00A80>    at scbus3 target 0 lun 0 (ada2,pass2)
<WDC WD20EFRX-68EUZN0 82.00A82>    at scbus5 target 0 lun 0 (ada3,pass3)
<WDC WD20EFRX-68EUZN0 80.00A80>    at scbus5 target 1 lun 0 (ada4,pass4)
<Kingston DT Mini Fun G2 PMAP>     at scbus7 target 0 lun 0 (pass5,da0)

gpart show:

Code:

>        34  3907029101  ada0  GPT  (1.8T)
          34          94        - free -  (47k)
         128     4194304     1  freebsd-swap  (2.0G)
     4194432  3902834696     2  freebsd-zfs  (1.8T)
  3907029128           7        - free -  (3.5k)

=>        34  3907029101  ada1  GPT  (1.8T)
          34          94        - free -  (47k)
         128     4194304     1  freebsd-swap  (2.0G)
     4194432  3902834696     2  freebsd-zfs  (1.8T)
  3907029128           7        - free -  (3.5k)

=>        34  3907029101  ada2  GPT  (1.8T)
          34          94        - free -  (47k)
         128     4194304     1  freebsd-swap  (2.0G)
     4194432  3902834696     2  freebsd-zfs  (1.8T)
  3907029128           7        - free -  (3.5k)

=>        34  3907029101  ada3  GPT  (1.8T)
          34          94        - free -  (47k)
         128     4194304     1  freebsd-swap  (2.0G)
     4194432  3902834696     2  freebsd-zfs  (1.8T)
  3907029128           7        - free -  (3.5k)

=>        34  3907029101  ada4  GPT  (1.8T)
          34          94        - free -  (47k)
         128     4194304     1  freebsd-swap  (2.0G)
     4194432  3902834696     2  freebsd-zfs  (1.8T)
  3907029128           7        - free -  (3.5k)

=>      63  15636801  da0  MBR  (7.5G)
        63   1930257    1  freebsd  (942M)
   1930320        63       - free -  (31k)
   1930383   1930257    2  freebsd  [active]  (942M)
   3860640      3024    3  freebsd  (1.5M)
   3863664     41328    4  freebsd  (20M)
   3904992  11731872       - free -  (5.6G)

=>      0  1930257  da0s1  BSD  (942M)
        0       16         - free -  (8.0k)
       16  1930241      1  !0  (942M)

=>      0  1930257  da0s2  BSD  (942M)
        0       16         - free -  (8.0k)
       16  1930241      1  !0  (942M)



[wachen]

dmesg

Code:

FreeBSD 9.2-RELEASE-p3 #0 r262572+825d682: Sat Mar  1 10:02:19 PST 2014

    root@build.ixsystems.com:/home/jkh/checkout/freenas/os-base/amd64/tank/home/jkh/checkout/freenas/FreeBSD/src/sys/FREENAS.amd64 a
md64
gcc version 4.2.1 20070831 patched [FreeBSD]
CPU: AMD Athlon(tm) II X2 260 Processor (3214.50-MHz K8-class CPU)
 Origin = "AuthenticAMD"  Id = 0x100f63  Family = 0x10  Model = 0x6  Stepping = 3
 Features=0x178bfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,MMX,FXSR,SSE,SSE2,HTT>
 Features2=0x802009<SSE3,MON,CX16,POPCNT>
 AMD Features=0xee500800<SYSCALL,NX,MMX+,FFXSR,Page1GB,RDTSCP,LM,3DNow!+,3DNow!>
 AMD Features2=0x37ff<LAHF,CMP,SVM,ExtAPIC,CR8,ABM,SSE4A,MAS,Prefetch,OSVW,IBS,SKINIT,WDT>
 TSC: P-state invariant
real memory  = 8589934592 (8192 MB)
avail memory = 7981789184 (7612 MB)
Event timer "LAPIC" quality 400
ACPI APIC Table: <122310 APIC1951>
FreeBSD/SMP: Multiprocessor System Detected: 2 CPUs
FreeBSD/SMP: 1 package(s) x 2 core(s)
cpu0 (BSP): APIC ID:  0
cpu1 (AP): APIC ID:  1
WARNING: VIMAGE (virtualized network stack) is a highly experimental feature.
ACPI Warning: Optional field Pm2ControlBlock has zero address or length: 0x0000000000000000/0x1 (20110527/tbfadt-586)
ioapic0 <Version 2.1> irqs 0-23 on motherboard
kbd1 at kbdmux0
cryptosoft0: <software crypto> on motherboard
aesni0: No AESNI support.
padlock0: No ACE support.
acpi0: <122310 XSDT1951> on motherboard
acpi0: Power Button (fixed)
acpi0: reservation of fee00000, 1000 (3) failed
acpi0: reservation of ffb80000, 80000 (3) failed
acpi0: reservation of fec10000, 20 (3) failed
acpi0: reservation of fed40000, 5000 (3) failed
acpi0: reservation of 100000, cfe00000 (3) failed
acpi0: reservation of 0, a0000 (3) failed
cpu0: <ACPI CPU> on acpi0
cpu1: <ACPI CPU> on acpi0
attimer0: <AT timer> port 0x40-0x43 irq 0 on acpi0
Timecounter "i8254" frequency 1193182 Hz quality 0
Event timer "i8254" frequency 1193182 Hz quality 100
atrtc0: <AT realtime clock> port 0x70-0x71 irq 8 on acpi0
Event timer "RTC" frequency 32768 Hz quality 0
hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0
Timecounter "HPET" frequency 14318180 Hz quality 950
Event timer "HPET" frequency 14318180 Hz quality 550
Event timer "HPET1" frequency 14318180 Hz quality 450

Timecounter "ACPI-fast" frequency 3579545 Hz quality 900

acpi_timer0: <32-bit timer at 3.579545MHz> port 0x808-0x80b on acpi0
pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
pci0: <ACPI PCI bus> on pcib0
pcib1: <ACPI PCI-PCI bridge> at device 1.0 on pci0
pci1: <ACPI PCI bus> on pcib1
vgapci0: <VGA-compatible display> port 0xd000-0xd0ff mem 0xd0000000-0xdfffffff,0xfebe0000-0xfebeffff,0xfea00000-0xfeafffff irq 18 at
device 5.0 on pci1
pci1: <multimedia, HDA> at device 5.1 (no driver attached)
pcib2: <ACPI PCI-PCI bridge> irq 18 at device 10.0 on pci0
pci2: <ACPI PCI bus> on pcib2
re0: <RealTek 8168/8111 B/C/CP/D/DP/E/F/G PCIe Gigabit Ethernet> port 0xe800-0xe8ff mem 0xfdfff000-0xfdffffff,0xfdff8000-0xfdffbfff
irq 18 at device 0.0 on pci2
re0: Using 1 MSI-X message
re0: Chip rev. 0x2c000000
re0: MAC rev. 0x00200000
miibus0: <MII bus> on re0
rgephy0: <RTL8169S/8110S/8211 1000BASE-T media interface> PHY 1 on miibus0
rgephy0:  none, 10baseT, 10baseT-FDX, 10baseT-FDX-flow, 100baseTX, 100baseTX-FDX, 100baseTX-FDX-flow, 1000baseT, 1000baseT-master, 1
000baseT-FDX, 1000baseT-FDX-master, 1000baseT-FDX-flow, 1000baseT-FDX-flow-master, auto, auto-flow
re0: Ethernet address: 14:da:e9:76:7a:5f
ahci0: <ATI IXP700 AHCI SATA controller> port 0xc000-0xc007,0xb000-0xb003,0xa000-0xa007,0x9000-0x9003,0x8000-0x800f mem 0xfe9ffc00-0
xfe9fffff irq 22 at device 17.0 on pci0
ahci0: AHCI v1.10 with 4 3Gbps ports, Port Multiplier supported
ahcich0: <AHCI channel> at channel 0 on ahci0
ahcich1: <AHCI channel> at channel 1 on ahci0
ahcich2: <AHCI channel> at channel 2 on ahci0
ahcich3: <AHCI channel> at channel 3 on ahci0
ohci0: <AMD SB7x0/SB8x0/SB9x0 USB controller> mem 0xfe9fe000-0xfe9fefff irq 16 at device 18.0 on pci0
usbus0 on ohci0
ohci1: <AMD SB7x0/SB8x0/SB9x0 USB controller> mem 0xfe9fd000-0xfe9fdfff irq 16 at device 18.1 on pci0
usbus1 on ohci1
ehci0: <AMD SB7x0/SB8x0/SB9x0 USB 2.0 controller> mem 0xfe9ff800-0xfe9ff8ff irq 17 at device 18.2 on pci0
usbus2: EHCI version 1.0
usbus2 on ehci0
ohci2: <AMD SB7x0/SB8x0/SB9x0 USB controller> mem 0xfe9fc000-0xfe9fcfff irq 18 at device 19.0 on pci0
usbus3 on ohci2
ohci3: <AMD SB7x0/SB8x0/SB9x0 USB controller> mem 0xfe9fb000-0xfe9fbfff irq 18 at device 19.1 on pci0
usbus4 on ohci3
ehci1: <AMD SB7x0/SB8x0/SB9x0 USB 2.0 controller> mem 0xfe9ff400-0xfe9ff4ff irq 19 at device 19.2 on pci0
usbus5: EHCI version 1.0
usbus5 on ehci1
pci0: <serial bus, SMBus> at device 20.0 (no driver attached)
atapci0: <ATI IXP700/800 UDMA133 controller> port 0x1f0-0x1f7,0x3f6,0x170-0x177,0x376,0xff00-0xff0f at device 20.1 on pci0
ata0: <ATA channel> at channel 0 on atapci0

ata1: <ATA channel> at channel 1 on atapci0

pci0: <multimedia, HDA> at device 20.2 (no driver attached)
isab0: <PCI-ISA bridge> at device 20.3 on pci0
isa0: <ISA bus> on isab0
pcib3: <ACPI PCI-PCI bridge> at device 20.4 on pci0
pci3: <ACPI PCI bus> on pcib3
ohci4: <AMD SB7x0/SB8x0/SB9x0 USB controller> mem 0xfe9fa000-0xfe9fafff irq 18 at device 20.5 on pci0
usbus6 on ohci4
amdtemp0: <AMD CPU On-Die Thermal Sensors> on hostb4
acpi_button0: <Power Button> on acpi0
uart0: <16550 or compatible> port 0x3f8-0x3ff irq 4 flags 0x10 on acpi0
orm0: <ISA Option ROM> at iomem 0xc0000-0xcefff on isa0
amdsbwd0: Previous Reset was caused by Watchdog
amdsbwd0: <AMD SB600/SB7xx Watchdog Timer> at iomem 0xfec000f0-0xfec000f3,0xfec000f4-0xfec000f7 on isa0
sc0: <System console> at flags 0x100 on isa0
sc0: VGA <16 virtual consoles, flags=0x300>
vga0: <Generic ISA VGA> at port 0x3c0-0x3df iomem 0xa0000-0xbffff on isa0
atkbdc0: <Keyboard controller (i8042)> at port 0x60,0x64 on isa0
atkbd0: <AT Keyboard> irq 1 on atkbdc0
kbd0 at atkbd0
atkbd0: [GIANT-LOCKED]
wbwd0: HEFRAS and EFER do not align: EFER 0x2e DevID 0xff DevRev 0xff CR26 0xff
acpi_throttle0: <ACPI CPU Throttling> on cpu0
hwpstate0: <Cool`n'Quiet 2.0> on cpu0
Timecounters tick every 1.000 msec
ipfw2 (+ipv6) initialized, divert enabled, nat enabled, default to accept, logging disabled
DUMMYNET 0xfffffe0002b24c80 with IPv6 initialized (100409)
load_dn_sched dn_sched RR loaded
load_dn_sched dn_sched WF2Q+ loaded
load_dn_sched dn_sched FIFO loaded
load_dn_sched dn_sched PRIO loaded
load_dn_sched dn_sched QFQ loaded
usbus0: 12Mbps Full Speed USB v1.0
usbus1: 12Mbps Full Speed USB v1.0
usbus2: 480Mbps High Speed USB v2.0
usbus3: 12Mbps Full Speed USB v1.0
usbus4: 12Mbps Full Speed USB v1.0
usbus5: 480Mbps High Speed USB v2.0
usbus6: 12Mbps Full Speed USB v1.0
ugen0.1: <ATI> at usbus0
uhub0: <ATI OHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus0
ugen1.1: <ATI> at usbus1
uhub1: <ATI OHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus1
ugen2.1: <ATI> at usbus2
uhub2: <ATI EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus2

ugen3.1: <ATI> at usbus3

uhub3: <ATI OHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus3
ugen4.1: <ATI> at usbus4
uhub4: <ATI OHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus4
ugen5.1: <ATI> at usbus5
uhub5: <ATI EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus5
ugen6.1: <ATI> at usbus6
uhub6: <ATI OHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus6
uhub6: 2 ports with 2 removable, self powered
uhub0: 3 ports with 3 removable, self powered
uhub1: 3 ports with 3 removable, self powered
uhub3: 3 ports with 3 removable, self powered
uhub4: 3 ports with 3 removable, self powered
ada0 at ahcich0 bus 0 scbus0 target 0 lun 0
ada0: <TOSHIBA DT01ACA200 MX4OABB0> ATA-8 SATA 3.x device
ada0: Serial Number 1486KZ1KS
ada0: 300.000MB/s transfers (SATA 2.x, UDMA6, PIO 8192bytes)
ada0: Command Queueing enabled
ada0: 1907729MB (3907029168 512 byte sectors: 16H 63S/T 16383C)
ada0: Previously was known as ad4
ada1 at ahcich1 bus 0 scbus1 target 0 lun 0
ada1: <ST2000VN000-1H3164 SC42> ATA-9 SATA 3.x device
ada1: Serial Number W1H1NZLR
ada1: 300.000MB/s transfers (SATA 2.x, UDMA6, PIO 8192bytes)
ada1: Command Queueing enabled
ada1: 1907729MB (3907029168 512 byte sectors: 16H 63S/T 16383C)
ada1: Previously was known as ad6
ada2 at ahcich3 bus 0 scbus3 target 0 lun 0
ada2: <WDC WD20EFRX-68EUZN0 80.00A80> ATA-9 SATA 3.x device
ada2: Serial Number WD-WCC4M0857863
ada2: 300.000MB/s transfers (SATA 2.x, UDMA6, PIO 8192bytes)
ada2: Command Queueing enabled
ada2: 1907729MB (3907029168 512 byte sectors: 16H 63S/T 16383C)
ada2: quirks=0x1<4K>
ada2: Previously was known as ad10
ada3 at ata1 bus 0 scbus5 target 0 lun 0
ada3: <WDC WD20EFRX-68EUZN0 82.00A82> ATA-9 SATA 3.x device
ada3: Serial Number WD-WCC4M5YJSJ2V
ada3: 150.000MB/s transfers (SATA, UDMA6, PIO 8192bytes)
ada3: 1907729MB (3907029168 512 byte sectors: 16H 63S/T 16383C)
ada3: quirks=0x1<4K>
ada3: Previously was known as ad2
ada4 at ata1 bus 0 scbus5 target 1 lun 0
ada4: <WDC WD20EFRX-68EUZN0 80.00A80> ATA-9 SATA 3.x device
ada4: Serial Number WD-WCC4M0898617

ada4: 150.000MB/s transfers (SATA, UDMA6, PIO 8192bytes)

ada4: 1907729MB (3907029168 512 byte sectors: 16H 63S/T 16383C)
ada4: quirks=0x1<4K>
ada4: Previously was known as ad3
SMP: AP CPU #1 Launched!
Timecounter "TSC-low" frequency 1607250789 Hz quality 800
uhub2: 6 ports with 6 removable, self powered
uhub5: 6 ports with 6 removable, self powered
Root mount waiting for: usbus2
ugen2.2: <Kingston> at usbus2
umass0: <Kingston DT Mini Fun G2, class 0/0, rev 2.00/1.00, addr 2> on usbus2
umass0:  SCSI over Bulk-Only; quirks = 0x4000
umass0:7:0:-1: Attached to scbus7
Trying to mount root from ufs:/dev/ufs/FreeNASs2a [ro]...
mountroot: waiting for device /dev/ufs/FreeNASs2a ...
da0 at umass-sim0 bus 0 scbus7 target 0 lun 0
da0: <Kingston DT Mini Fun G2 PMAP> Removable Direct Access SCSI-0 device
da0: Serial Number 00187D1174B6EB1170002257
da0: 40.000MB/s transfers
da0: 7635MB (15636864 512 byte sectors: 255H 63S/T 973C)
da0: quirks=0x2<NO_6_BYTE>
ugen3.2: <vendor 0x413c> at usbus3
ukbd0: <vendor 0x413c Dell KB216 Wired Keyboard, class 0/0, rev 1.10/1.08, addr 2> on usbus3
kbd2 at ukbd0
uhid0: <vendor 0x413c Dell KB216 Wired Keyboard, class 0/0, rev 1.10/1.08, addr 2> on usbus3
GEOM_RAID5: Module loaded, version 1.1.20130907.44 (rev 5c6d2a159411)
ZFS filesystem version: 5
ZFS storage pool version: features support (5000)
GEOM_ELI: Device ada0p1.eli created.
GEOM_ELI: Encryption: AES-XTS 256
GEOM_ELI:     Crypto: software
GEOM_ELI: Device ada1p1.eli created.
GEOM_ELI: Encryption: AES-XTS 256
GEOM_ELI:     Crypto: software
GEOM_ELI: Device ada2p1.eli created.
GEOM_ELI: Encryption: AES-XTS 256
GEOM_ELI:     Crypto: software
GEOM_ELI: Device ada3p1.eli created.
GEOM_ELI: Encryption: AES-XTS 256
GEOM_ELI:     Crypto: software
(ada1:ahcich1:0:0:0): READ_FPDMA_QUEUED. ACB: 60 00 80 01 40 40 00 00 00 01 00 00
(ada1:ahcich1:0:0:0): CAM status: Uncorrectable parity/CRC error
(ada1:ahcich1:0:0:0): Retrying command
(ada1:ahcich1:0:0:0): READ_FPDMA_QUEUED. ACB: 60 e0 a0 00 40 40 00 00 00 00 00 00
(ada1:ahcich1:0:0:0): CAM status: Uncorrectable parity/CRC error

(ada1:ahcich1:0:0:0): Retrying command

(ada1:ahcich1:0:0:0): READ_FPDMA_QUEUED. ACB: 60 e0 a0 00 40 40 00 00 00 00 00 00
(ada1:ahcich1:0:0:0): CAM status: Uncorrectable parity/CRC error
(ada1:ahcich1:0:0:0): Retrying command
(ada1:ahcich1:0:0:0): READ_FPDMA_QUEUED. ACB: 60 e0 a0 00 40 40 00 00 00 00 00 00
(ada1:ahcich1:0:0:0): CAM status: Uncorrectable parity/CRC error
(ada1:ahcich1:0:0:0): Retrying command
(ada1:ahcich1:0:0:0): READ_FPDMA_QUEUED. ACB: 60 e0 a0 00 40 40 00 00 00 00 00 00
(ada1:ahcich1:0:0:0): CAM status: Uncorrectable parity/CRC error

It just goes on and on until it says "Retries Exhausted"



[Davvo]

What is the output of zpool status?



[joeschmuck]

(ada1:ahcich1:0:0:0): CAM status: Uncorrectable parity/CRC error

Unless you fixed it already, you likely have a bad SATA cable connection here for ada1 ST2000VN000-1H3164 SC42 Serial Number W1H1NZLR.

Power the machine off, reseat or replace the one SATA cable, power on, then you can either watch the console for CRC error messages or examine dmesg for the errors. They hopefully they will be gone.

I think you will need to start a scrub once you have the CRC error fixed, let the scrub finish and zpool status will help let you know where it is, once done post the output of the status message. Hopefully it will be a good result.

How to start the scrub manually:
zpool status will give you the name of your pool name and the current status.
zpool scrub poolname will start the scrub.
After about 20 minutes run the first command again to see an estimated time for the scrub to complete. Leave it alone for at least that amount of time. Run the first command again, if completed then post that output. If not completed, wait per the estimated completion time and repeat as required.



[wachen]

zpool status

Code:

  pool: HomeNas1
 state: DEGRADED
status: One or more devices are faulted in response to persistent errors.
        Sufficient replicas exist for the pool to continue functioning in a
        degraded state.
action: Replace the faulted device, or use 'zpool clear' to mark the device
        repaired.
  scan: scrub repaired 0 in 5h12m with 0 errors on Sun Dec 10 06:12:58 2017
config:

        NAME                                            STATE     READ WRITE CKSUM
        HomeNas1                                        DEGRADED     0     0     0
          raidz1-0                                      DEGRADED     0     0     0
            gptid/88402c15-9ebe-11e3-b4d6-14dae9767a5f  ONLINE       0     0     0
            ada1p2                                      FAULTED      0     0     0  too many errors
            gptid/cdb7c6f8-a191-11e3-9c2a-14dae9767a5f  ONLINE       0     0     0
            gptid/7c579243-a16b-11e3-a305-14dae9767a5f  ONLINE       0     0     0
            gptid/857fa2c4-5436-11e5-8a37-14dae9767a5f  ONLINE       0     0     0

errors: No known data errors

Unfortunately, I don't have a new cable, so I swapped the SATA cable of that Seagate drive with the cable of another drive. I am still seeing the above--- Faulted ada1. I assume that means the ST drive is dead?

In that case, should I still do the zpool scrub?



[Davvo]

Unfortunately, I don't have a new cable, so I swapped the SATA cable of that Seagate drive with the cable of another drive.

Please no, put it back: you risk "losing" another drive (see below).

I am still seeing the above--- Faulted ada1. I assume that means the ST drive is dead?

It doesn't necessarily mean it's dead, it appears to have thrown out so much errors (thanks to the faulted cable) that the system decided to kick it out; zpool clear will put it back in but doing so before you replace the cable means it's likely to happen again.
We need a long smart test on ada1p2 to gain certainty.

should I still do the zpool scrub?

There is little point (besides the data integrity guarantee) in starting it without replacing the defective cable.
Also, take note that your pool is out of parity drives right now and a scrub's toll on the disks is (apparently) similar to a resilver's.
