Massive drop in Write speed on one pool

[chris.d]

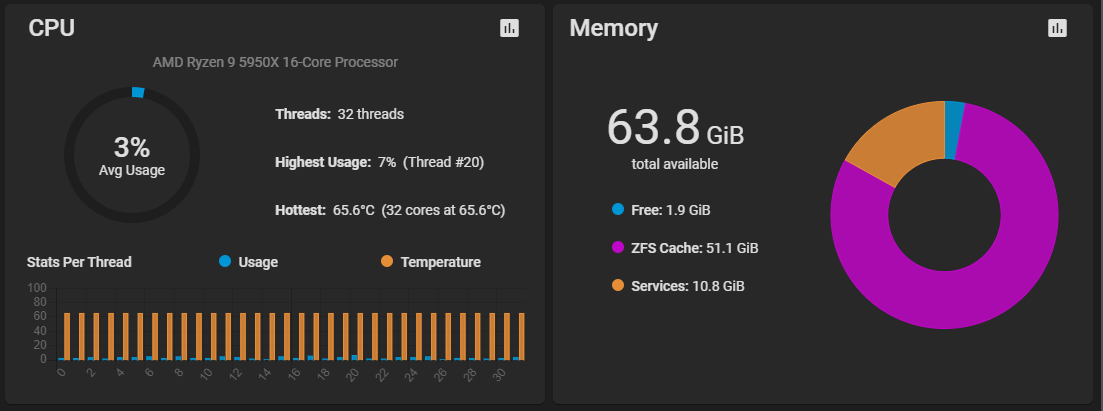

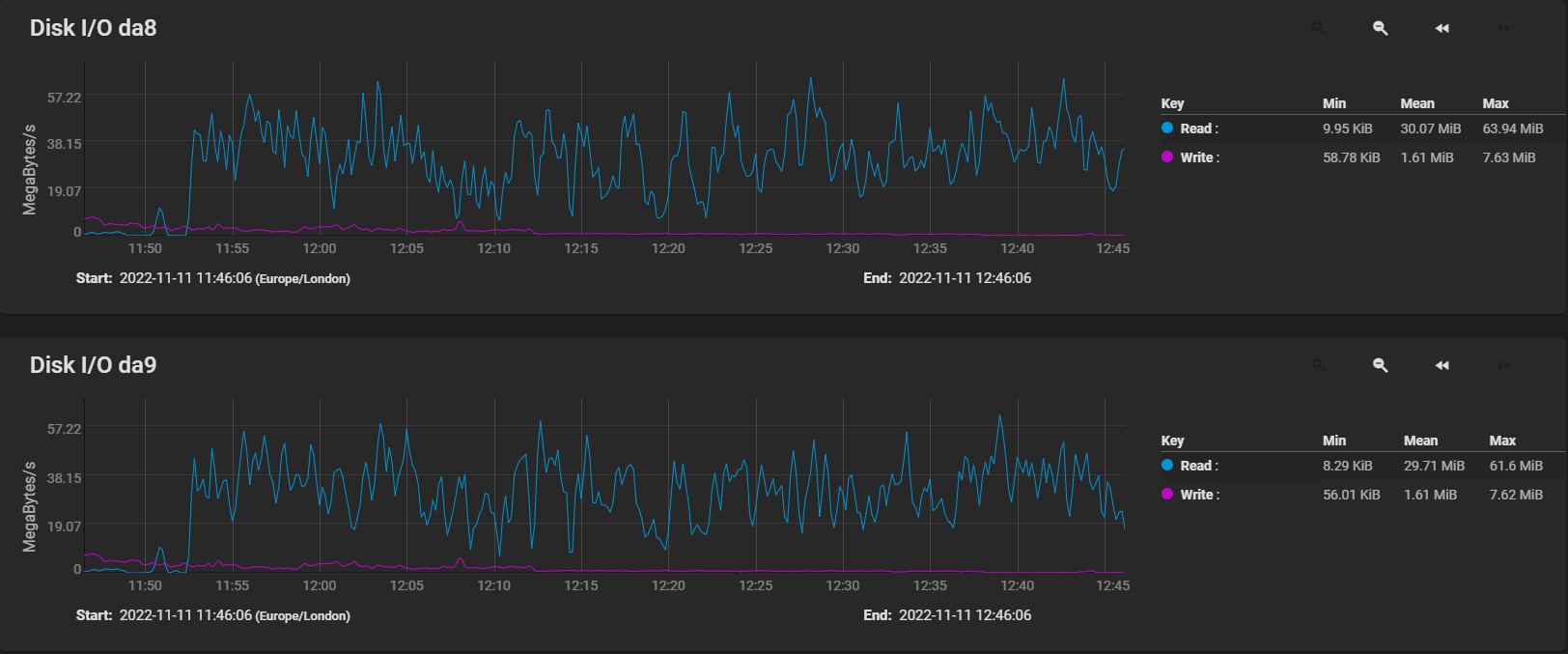

In the last couple of weeks we have experienced a massive drop in write performance from our production pool. Specs:

I don't believe it is a network issue as another pool with the same setup is currently running fine. This appeared to coincide migrating TrueCore from USB to SSD.
Production pool is currently at 77% of 60TB's. Though it was running fine at 90% capacity before the move to SSD.
I am a bit of a newbie, so if any more screengrabs/info will help, please let me know.

Thanks in advance.

Production Pool



[Samuel Tai]

Details of your hardware and pool topology, please, per the Forum Rules.

ZFS is known to have such performance drops as the pool fills past 50%, due to fragmentation. See @jgreco's post The path to success for block storage.



[jgreco]

77% of 60TB's. Though it was running fine at 90% capacity

This could be experiencing high fragmentation, which could account for slowness. ZFS is a copy-on-write filesystem, so when you replace a block, it allocates a new block in empty space, writes it, and then frees the old block wherever that was. This has a tendency to create free space in a scattershot manner which can be a performance killer as the system needs to start seeking heavily to find the smallish blocks of free space. This can have a dramatic impact on performance, and is one of the reasons ZFS folks are skeptical anytime someone comes in saying "it was running fine at 90% capacity" -- it quite probably wasn't, and rather it's likely that the damage wasn't immediately obvious.

Check to see how busy the disk is when you're experiencing the problem. Run "gstat -f da8" for example and see how busy the disk is. Here's an example of a relatively saturated disk:

Code:

dT: 1.012s  w: 1.000s  filter: da3
 L(q)  ops/s    r/s   kBps   ms/r    w/s   kBps   ms/w   %busy Name
    2    856      8     99   27.7    846  56210    1.8   86.8  da3
    0      0      0      0    0.0      0      0    0.0    0.0  da3p1
    2    856      8     99   27.7    846  56210    1.8   86.8  da3p2

It's still sustaining a high level of writes per second and kBps written per second despite being 87% busy, but as the percentage of seeks goes down, those metrics will fall.



[chris.d]

Thanks both. I'll look at the post mentioned
