I mounted a NFS device in TrueNAS SCALE, and it's very slow.

[Nostal Yuu]

I'm running a TrueNAS on Proxmox VE.

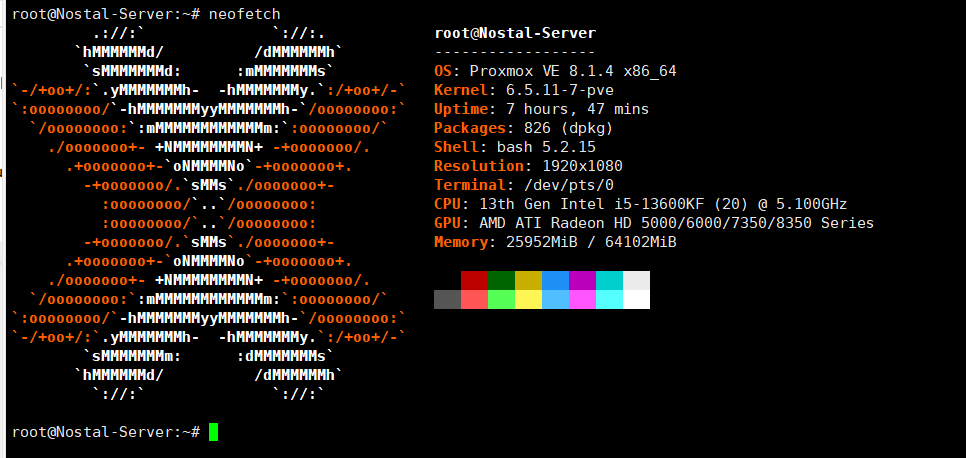

My server spec:

And I setup a Linux bridge which didn't connect to any physical network port, this vmbr is just for networking between internal VMs.
My TrueNAS running on 10.0.0.3, and I also have a Ubuntu VM running on 10.0.0.2.
My NFS mount command:

Code:

mount -t nfs -o rsize=8192,wsize=8192 10.0.0.3:/<pathToMyDataset>

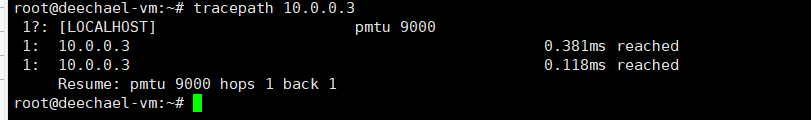

I configured MTU to 9000.

The question im facing is, the NFS speed is extremely slow compared to Samba.
I use this command to test speed:

Code:

dd if=/dev/zero of=/<pathToMyMountpoint> bs=1M count=512

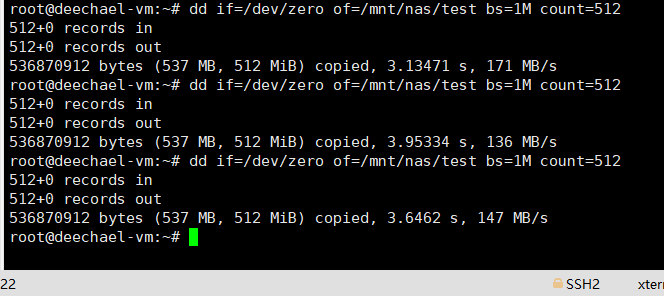

And I just got ~150MB/s:

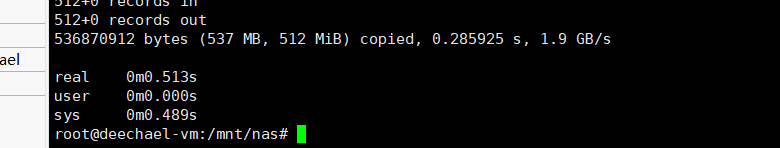

Compared to Samba:

I seached many documents and tried many options but it didn't work at all.

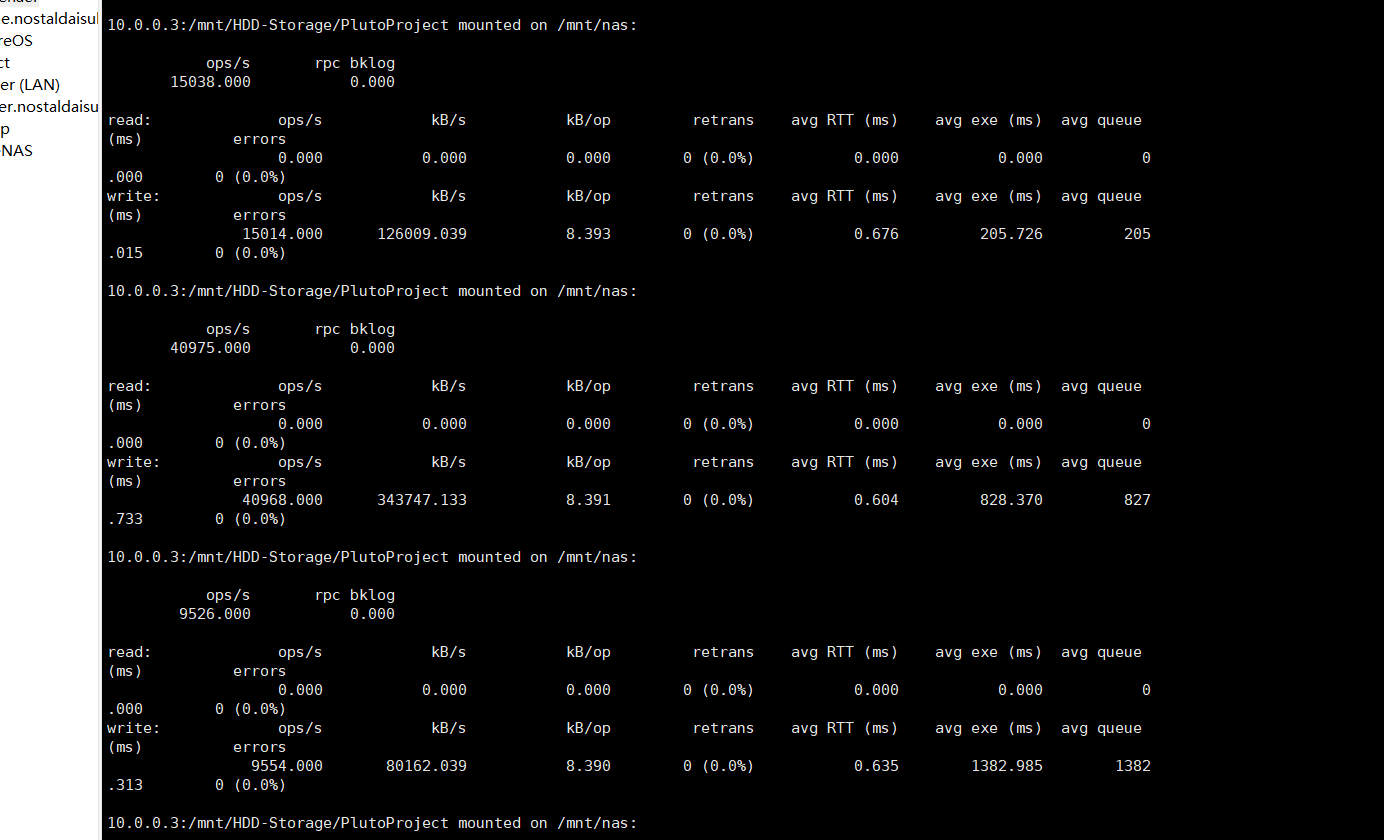

I found the exe time of NFS IO seems to be too long:

But i dont know how to fix this. :(
I hope someone can help me, thanks a lot.



[Nostal Yuu]

I let the rsize and wsize options to be default and disabled sync in TrueNAS Dataset, now the speed increased to ~1.2G/s.



[Kailee71]

Default options for NFS are usually safe and good these days. Same for MTU, the gains are usually neglible. I think the great big signpost in the sky in this case was the SMB transfers rate. Assuming you're on 10GbE your max throughput is under 1000MiB/s with an _extremely_ fast pool. You were seeing SMB writes being done async to storage, and the NFS write are being done sync (independently of your nfs mount!) as you correctly deduced. I personally will never take the risk with NFS data being async to storage (guarantees and requirements on the client are different between SMB and NFS), and for that reason I got a relatively fast SLOG vdev (RMS-200) which buffers the first 8GiB or so pretty fast. But that is a whole other rabbit hole to dive into.
