Dell Qlogic57810S ISCSI CHAP Authentication Failure

[baiclamp]

Hi, I use a dell two 10GBT qlogic57810s NIC for iscsi boot part no. is 0w1gcr. And my nas version is
TrueNAS-13.0-U6.1.
I try to using one way / two way auth, but all failure. but it works ok in windows software iscsi auth.
below are the pic of config detials

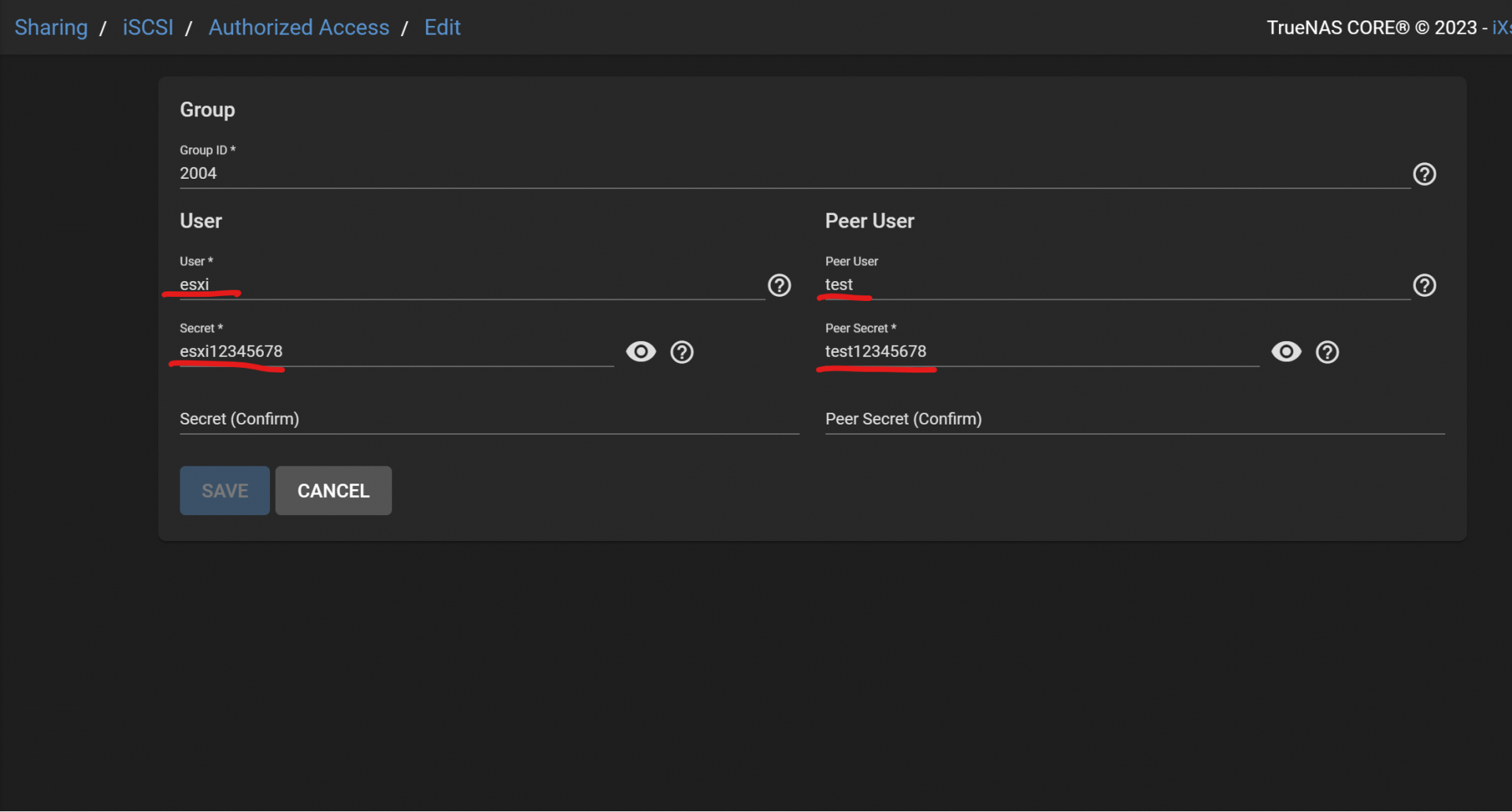

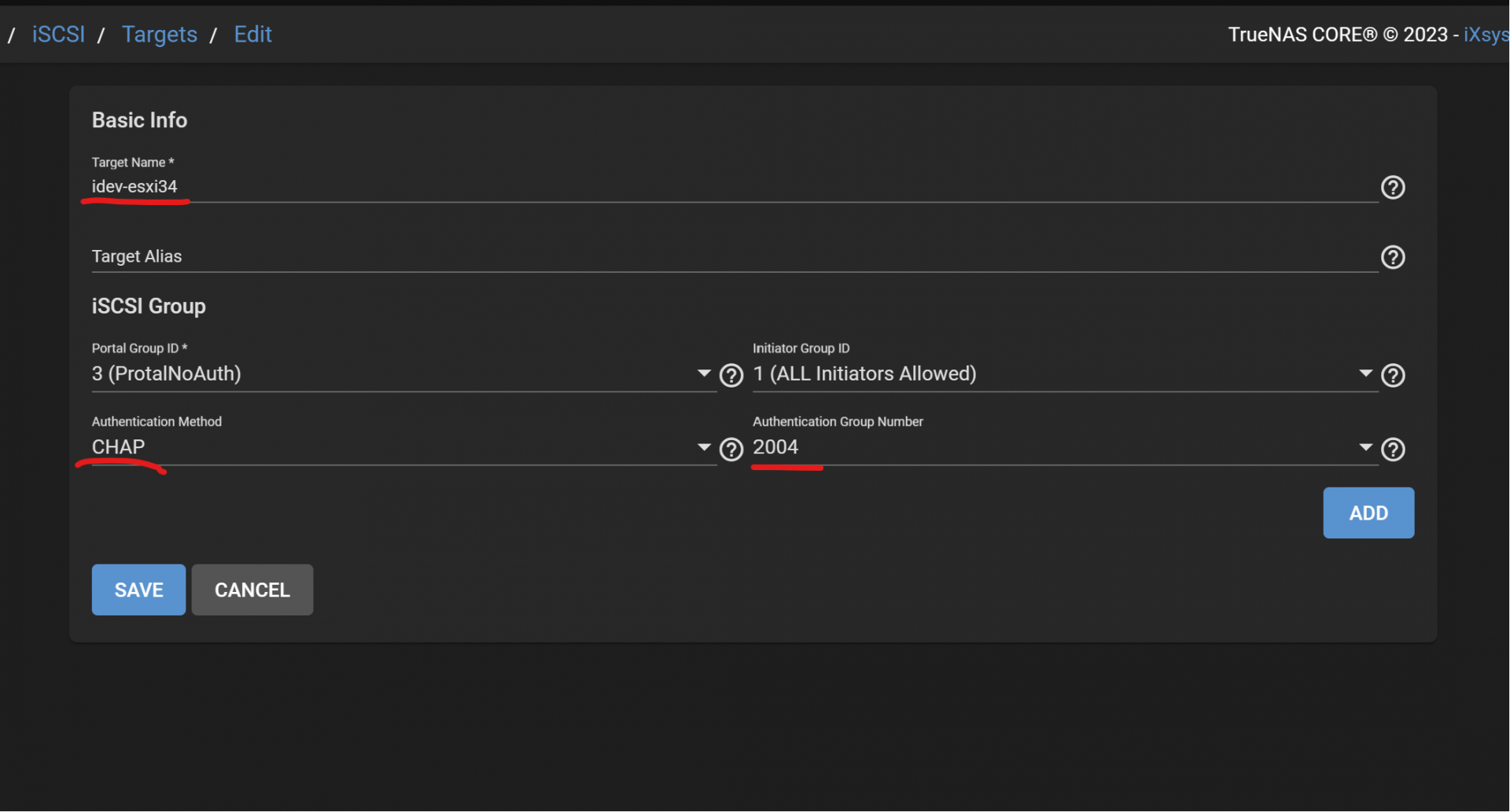

target side

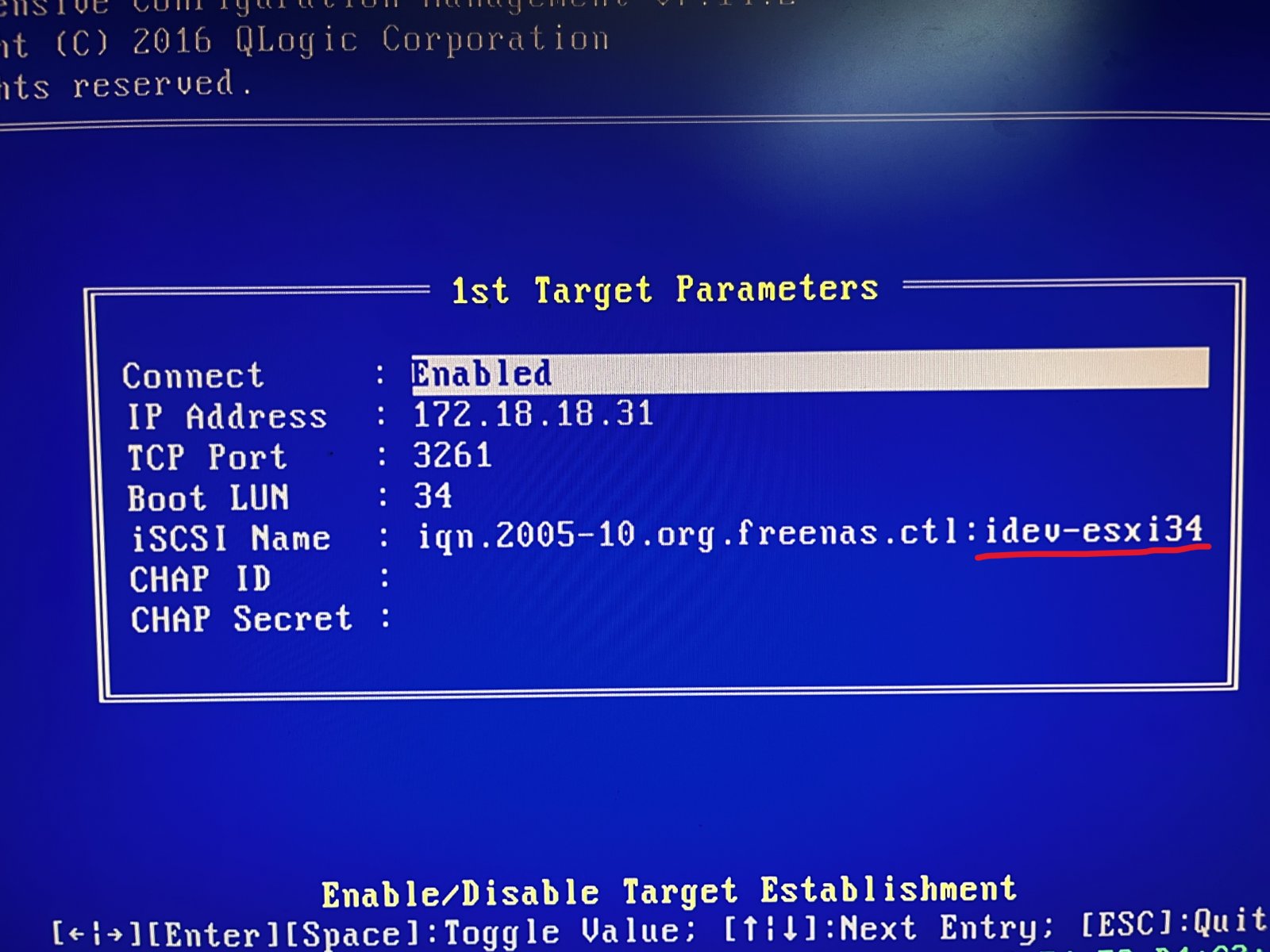

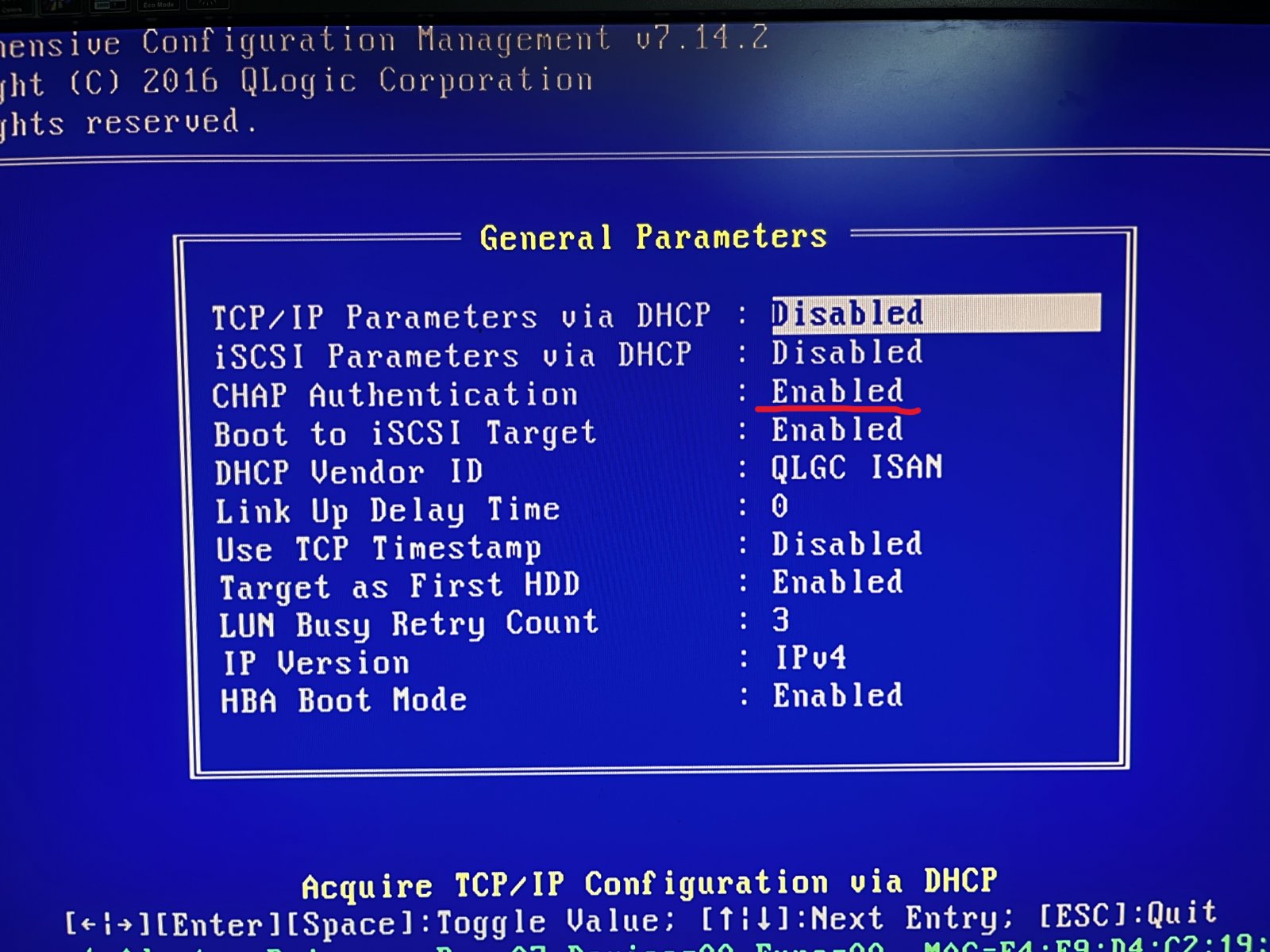

initiator side:

I don't know why. is it the qlogic nic iscsi chap auth not compatibility?

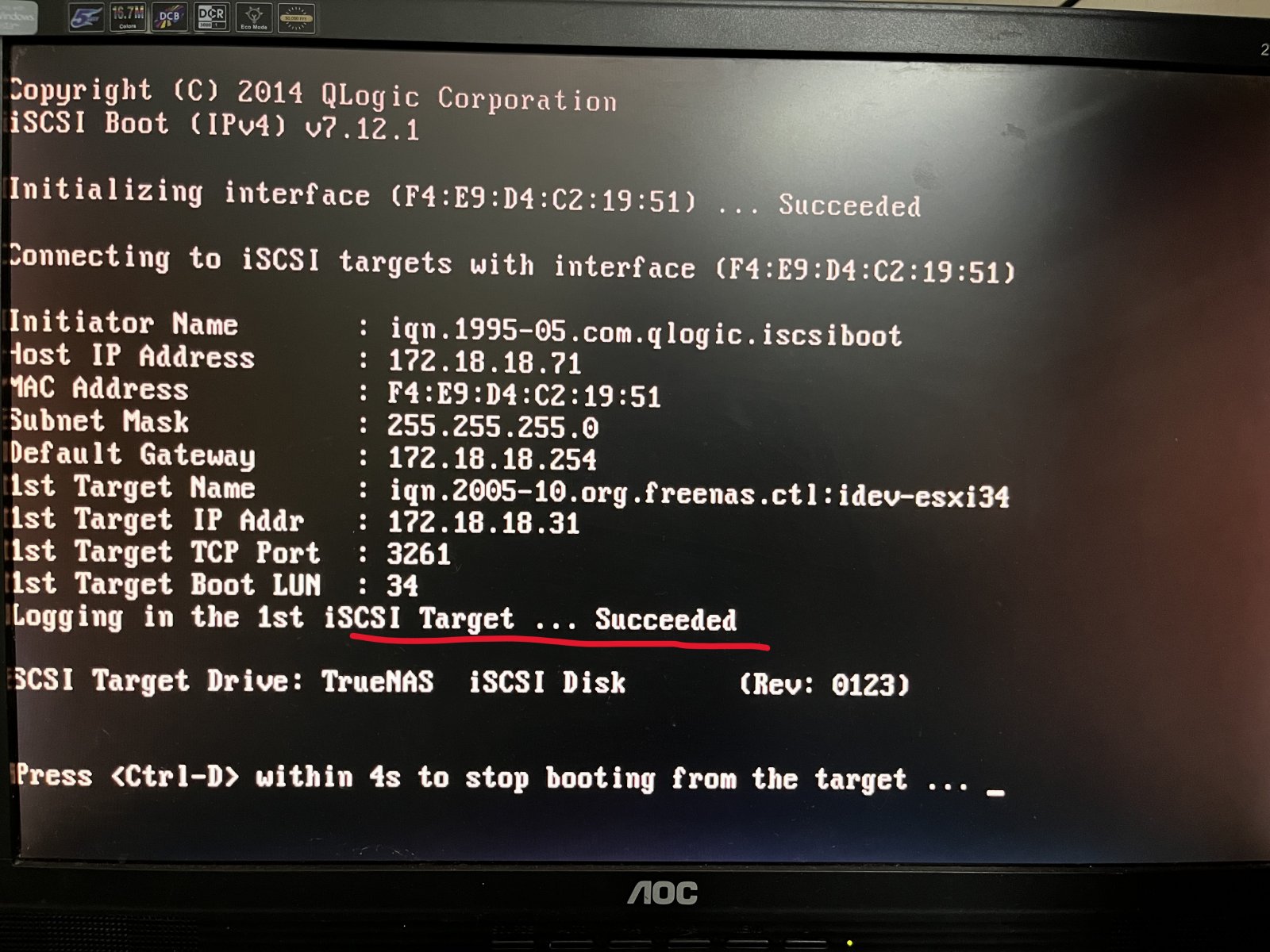

after I config the target with no auth need and no group, and disable the initiator side auth option is works ok

is there something wrong in my configurations?



[baiclamp]

by the way, i using another nic (embed in x9dri-ln4f+) and using one way chap auth , it works ok!
