CPU graph spike

[junior466]

I recently noticed that my CPU graph under reporting looks awfully "spiky" and I was wondering if this is normal behavior. I understand that its hard to answer this question without knowing more about my configuration and use but I don't have any jails or virtual machines setup if that helps. I am however, collecting metrics from FreeNAS to an Influx database and using Grafana to visualize so this could be one of the reasons?

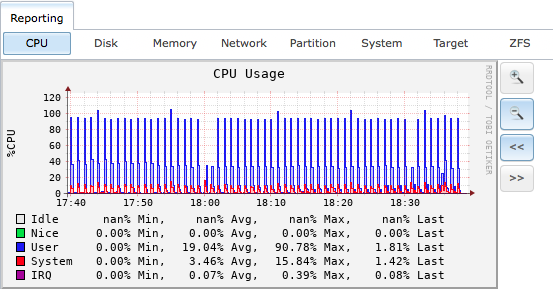

Here's an example:

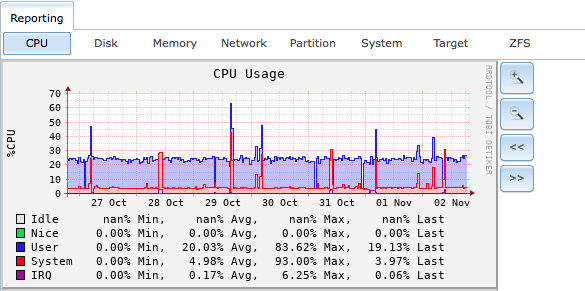

If I zoom out, the graph will look normal.

Thank you.



[CraigD]

I understand that its hard to answer this question without knowing more about my configuration

Yes it is, if you want help tell us about your hardware

Have Fun



[junior466]

Yes it is, if you want help tell us about your hardware

Have Fun

I meant to place my hardware info on the bottom of the post. I apologize.

System Information
Hostname freenas.local Edit
Build FreeNAS-11.1-U6
Platform Intel(R) Xeon(R) CPU E5-2403 0 @ 1.80GHz
Memory 16300MB
System Time Fri, 9 Nov 2018 20:12:54 -0500
Uptime 8:12PM up 16 days, 2:20, 0 users
Load Average 0.25, 0.32, 0.32

And by my configuration I meant exactly how I use my system, the services running etc. I can of course provide any information necessary.

Thank you



[IceBoosteR]

No I guess it is not normal.
If your system is on idle, you would have around 1-5% of load, but not such spikes.
Have a look if your disks are also in use during these times.



[cobrakiller58]

Is influx poking your FreeNAS every sixty seconds? as well as the disks the network connection will probably show these regular spikes.



[junior466]

Is influx poking your FreeNAS every sixty seconds? as well as the disks the network connection will probably show these regular spikes.

Yes, just about that often. I will run a test by stopping influx for a while and see if it makes a difference.

Thanks.
