comreset failed (errno=-32) on TrueNAS Scale installation

[systech]

I am trying to install TrueNAS Scale 22.12.3.3 on a Supermicro X10DRU-i+ server plugging into the internal usb port on the motherboard or external usb.

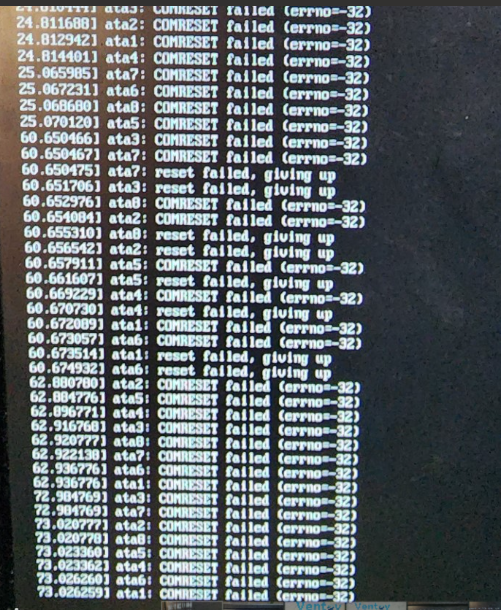

When I boot up from usb I get the comreset failed (errno=-32) message and the install fails.
I have tried another usb stick using both Rufus and Venoy and still end up with the same result.

Any ideas or suggestion will be much appreicated.



[Ericloewe]

Those errors are clearly related to SATA disks, hence the ataN device names. Disconnect all non-boot media and tell us the details of your system in terms of storage.



[systech]

Those errors are clearly related to SATA disks, hence the ataN device names. Disconnect all non-boot media and tell us the details of your system in terms of storage.

I removed all 12 SAS disks leaving behind just the Sata SSD on which I previously installed Truenas Core and the bootable USB. Still the same results.



[Ericloewe]

SAS disks? The errors are for (S)ATA disks. And you're getting the same errors, for multiple disks, even though there are no such disks attached?



[systech]

SAS disks? The errors are for (S)ATA disks. And you're getting the same errors, for multiple disks, even though there are no such disks attached?

After waiting for a bit longer I was able to continue with the installation and it worked fine. I have no idea what was wrong as I am new to this.

Currently I have a single SFF-8643 to SFF-8643 cable connected to the AOC-S3008L-L8e HBA card. Would connecting another SFF-8643 cable increase the bandwidth for data? I have x5 HGST HUS724040ALS640 and x7 Seagate ST3400755SS SAS drives and a BPN-SAS3-826EL1 backplane.



[Ericloewe]

Currently I have a single SFF-8643 to SFF-8643 cable connected to the AOC-S3008L-L8e HBA card. Would connecting another SFF-8643 cable increase the bandwidth for data? I have x5 HGST HUS724040ALS640 and x7 Seagate ST3400755SS SAS drives and a BPN-SAS3-826EL1 backplane.

Conceptually yes. In practice, this can be flakier in some cases and you're not limited as you are now. You have 48 Gb/s (4x 12 Gb/s per lane), full duplex to the expander. With a great deal of optimism, your disks will never exceed 3 Gb/s half-duplex and you have 12 of them, so 36 Gb/s.



[systech]

Thanks so much for the quick response.

The other question I have is on failover. With a single HBA and with a single SAS expander such as the BPN-SAS3-826EL1, there is no way I can achieve failover. Correct? If I connect another SFF-8643 to the HBA it's only going to increase bandwidth but not give any redundancy? Does this make sense?



[Ericloewe]

Pretty much, though I maintain that redundancy through multipath is a waste of time designed to suck money out of enterprise customers who don't know better. The set of scenarios that benefit is very narrow.



[Oszzayas]

I have a similar issue, i already unplugged and plug the hard drive and run the commands to verify the file system. The error message shows uo for about 5 minutes and the laptop start ok
