Boot Pool Status Is DEGRADED

MatthiasB

Cadet
Joined
Aug 11, 2021
Messages
3
I'm running FreeNAS-11.2-U7

The system is installed on two mirrored USB sticks.

Now I got the following notification:

info
Boot Pool Status Is DEGRADED: One or more devices has experienced an unrecoverable error. An attempt was made to correct the error. Applications are unaffected.

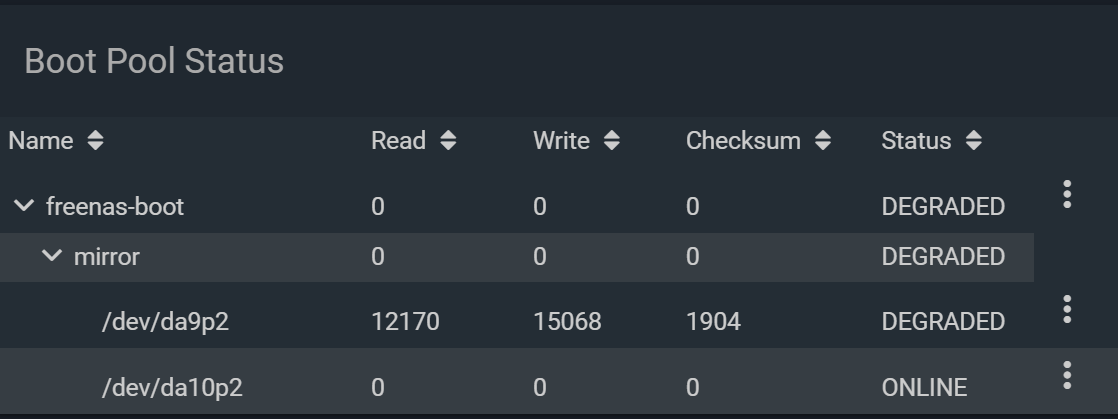

Checking the Boot Pool Status, it shows me the following:



my questions:

1. which of the two devices is the broken one? Status of /dev/da9p2 is shown as DEGRADED while /dev/da10p2 is shown as ONLINE, but it seems only on /dev/da9p2 were any bytes read or written. So, which is the broken drive?

2. I don't know which usb port maps to which device descriptor. How can I figure out which thumbstick on the outside of my machine is which /dev ?

3. When I have a replacement thumbdrive, what's the proper way to replace it and rebuild the mirror?


MatthiasB

Cadet
Joined
Aug 11, 2021
Messages
3
Additional info:
This is running on a Dell R230 and the two front usb-slots are used for the usb thumbsticks. One is a Samsung Bar Plus (32GB) and the other is a Samsung Ultra Fit (32GB)


Patrick M. Hausen

Hall of Famer
Joined
Nov 25, 2013
Messages
7,776
If the USB drives feature some activity indicator you could read from the working one and check which one is lit.
dd if=/dev/da10 of=/dev/null - press Ctrl-C to stop.


MatthiasB

Cadet
Joined
Aug 11, 2021
Messages
3
If the USB drives feature some activity indicator you could read from the working one and check which one is lit.
dd if=/dev/da10 of=/dev/null - press Ctrl-C to stop.
Thank you for your suggestion Patrick, unfortunately none of the drives has an activity indicator.
