Adding IP on interface and settings are all wrong afterward.

[Rigor_M]

Hi,
Using Core-12-U7. Adding a IP to one of my interface, testing and after change, settings are all wrong. 0.0.0.0/8 is added to my IP, MTU not saved (even though I have it set in my switch). DHCP set back to YES even if I uncheck the box and set a static IP.

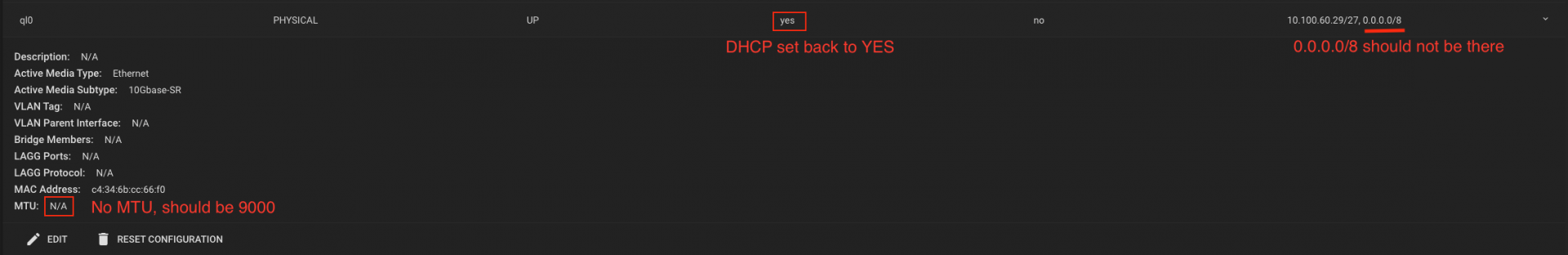

Screenshot with what I mean :

What is should be the process after doing the change test ?

Thanks !



[Rigor_M]

Also, When I reboot, no network configs are kept. (and yes, I did click on save :) )



[Samuel Tai]

Is this your only active interface? Have you tried using the console menu?



[Rigor_M]

I have another one for management.

Playing around, is seems that if I have a DHCP activated interface (in my case, the management one), none of the other interfaces keep there settings. I tried tried adding a static IP to the management interface and the the second one kept its settings. Could this be a bug ? not able to have a DHCP interface and another STATIC at the same time ?



[Patrick M. Hausen]

One DHCP interface and a different interface with static IP - yes, that's supposed to work.
An interface with DHCP and an additional static address on the same interface - no.



[Rigor_M]

One DHCP interface and a different interface with static IP - yes, that's supposed to work.
An interface with DHCP and an additional static address on the same interface - no.

Yeah, I have two interfaces that are UP. Management & backend. so each has its own settings



[Patrick M. Hausen]

Different networks, right? You cannot have two interfaces in the same broadcast domain.



[Rigor_M]

Different networks, right? You cannot have two interfaces in the same broadcast domain.

Yes
Management is on a VLAN and backend is on a isolated port group

Like I said, removing the DHCP on the management interface and using both Static IPs, is working.
